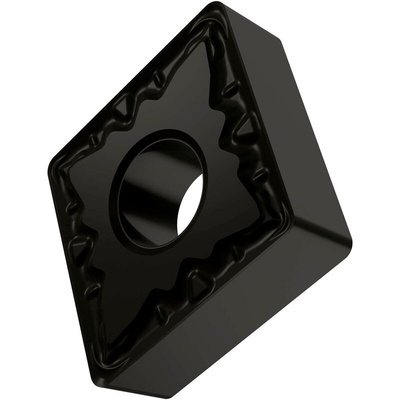

CNMG 120408E-FM, Pramet CNMG Series Lathe Insert for Use with DCLNR 12, 4.76mm Height, 95° Approach, 12.9mm Length

Pramet Lathe Part, Negative Type, 80° Rhomboid Shape - CNMG Series - CNMG 120408E-FM:T9325

Need to cut excess stock from your workpieces? Fit this Pramet lathe part to your tool. Thanks to its hardwearing carbide body, it cuts through tough materials without a hitch for a smooth finish. Its MT-CVD coating means the insert shakes off heat build-up to keep turning for longer. Support for steel and iron pieces makes it a versatile processing tool. This unit cuts between 0.15 and 0.45mm per revolution to fly through machining jobs.

Features & Benefits

• Chip-breaker nose breaks up debris to reduce the risk of equipment damage
• Cutting edge length of 12.9mm to quickly cover large surfaces

Applications

• Heavy engineering
• Product moulding
• Metalworking

Do I need to sharpen this product?

No, it has a double-sided design, so you can flip it over when one cutting edge wears out. This provides a fresh cutting surface without the hassle of sharpening.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

CNMG Turning Inserts - Negative Data Sheet
