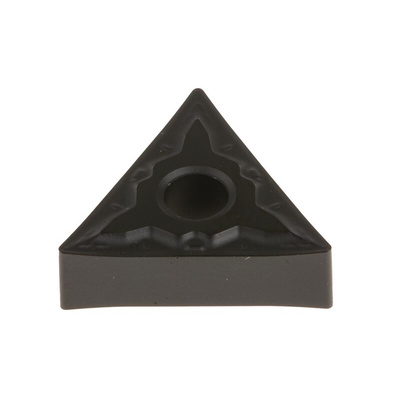

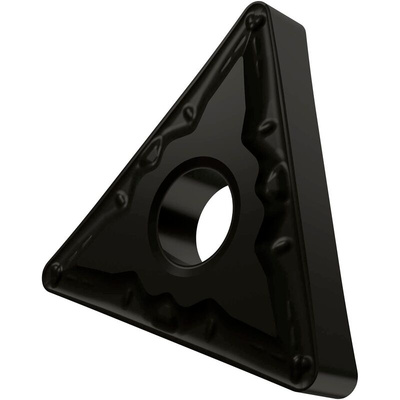

TNMG 160404E-FM, Pramet TNMG Series Lathe Insert for Use with MTJNR, 4.76mm Height, 93° Approach, 16.5mm Length

Pramet TNMG Insert

TNMG Negative Turning Insert for use with DTGN, DTFN, PTFN, PTGN, PTTN, PTFN and MTJN Holders and Bars.

T9315

Excellent for machining Steel
Acceptable for Cast Iron and Hardened Steels

T9325

Excellent for machining Steel and Stainless Steel
Acceptable for Cast Iron

T9335

Excellent for machining Steel
Acceptable for Stainless Steel

Pramet TNMG Series Lathe Part, T9325 Grade, 16.5mm Length - TNMG 160404E-FM:T9325

This lathe insert TNMG 160404E FM:T9325 is a high performance indexable lathe insert designed for precision cutting in the automation, electronics, electrical, and mechanical industries. With a triangular shape and a T9325 grade, this insert from Pramet is crafted for optimal performance on lathe machines.

Features & Benefits

• Triangular shape for efficient cutting
• T9325 grade for durability and long lasting performance
• Ideal for use with MTJNR lathe parts
• Indexable design for easy and quick replacement

Applications

• Perfect for precise lathe cutting tasks
• Suitable for automation, electronics, electrical, and mechanical industries
• Used for shaping and finishing operations on lathe machines

Can it be used for both rough and precision cutting tasks?

Yes, this lathe insert is suitable for both rough and precision cutting tasks due to its T9325 grade and triangular shape.

Will it provide high performance in high-speed machining operations?

Yes, the TNMG 160404E-FM insert is designed for high-performance cutting in various machining operations.

Is it compatible with all standard lathe machines?

Yes, this insert is designed to be compatible with a wide range of lathe machines for versatility in applications.

Can it be used for both internal and external machining operations?

Yes, the indexable design of this lathe insert makes it suitable for both internal and external machining operations.

Does it require any special tools for installation?

No, the TNMG 160404E-FM:T9325 insert is designed for easy replacement and installation on standard lathe machines.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

TNMG Turning Inserts - Negative Data Sheet

Catalogue - Turning
