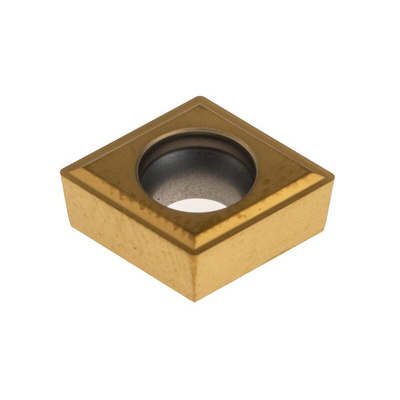

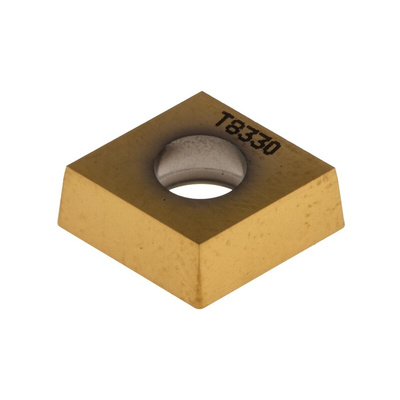

CCMT 09T304E-FF2, Pramet CCMT Series Lathe Insert for Use with SCLCR 09, 3.97mm Height, 95° Approach, 9.7mm Length

Pramet Lathe Part, 4.4mm Fixing Hole Diameter, 7° Clearance Angle - CCMT Series - CCMT 09T304E-FF2:T8430

Finish your workpieces off without a hitch using this lathe part from Pramet. The component's rounded edges evenly cut across your workpiece, ensuring a smooth finish every time. The part is made of tungsten carbide-cobalt with a PVD coating, so it safely resists impact, wear and high speeds. This means you can rely on it to last for the long haul.

Features & Benefits

• Suitable for use with steel or cast iron for versatility
• Slips onto a Pramet tool holder (866-0332) for quick and easy assembly

Applications

• Processing plants
• Construction sites
• Rail and pipe manufacturing
• Automotive repair

What's the maximum operating speed this lathe part handles?

This part handles cutting speeds up to 200m/min, so you can count on it for fast and efficient performance.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

CCMT Turning Inserts - Positive Data Sheet

8660366_Catalogue_en
