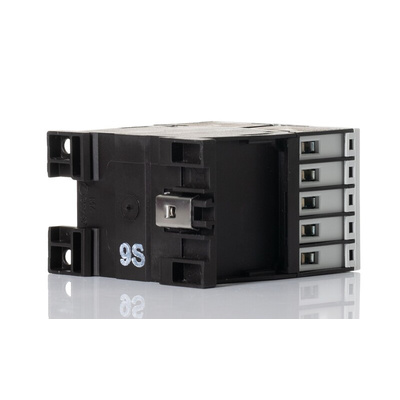

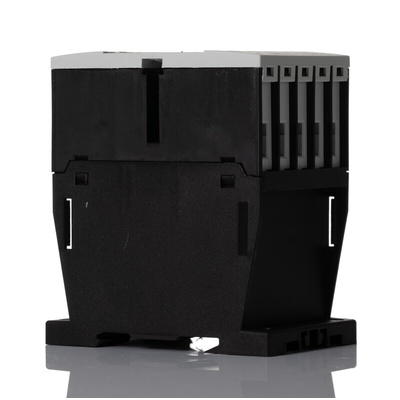

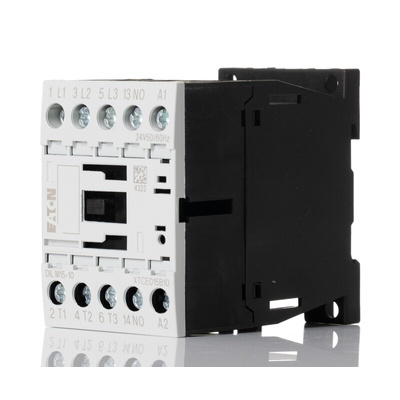

290062 XTCE015B10T, Eaton Contactor, 24 V ac Coil, 3-Pole, 15 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 2.5mΩ Resistance Per Pole, 8000V AC Impulse Withstand Voltage - XT Series - 290062 XTCE015B10T

Boost the ON/OFF functions of your applications with this contactor from Eaton. It controls the repeated switching of circuits to keep the performance of automated processes, medical imaging systems and automatic doors on track. The multi-pole unit accommodates up to three conductors to streamline your layout. As it's a small device that measures only 75 (L) x 45 (W) x 68mm (H), it easily slots into tight spots in crowded setups. Thanks to a light weight of 240g, it won't strain your panel or rail.

Features & Benefits

• Works without a glitch in temperatures between -25°C and +60°C
• Delivers 5000 mechanical operations an hour, so you get super-fast switching
• Opens and closes circuits at speeds between 9 and 21ms for reliable efficiency

How do I connect wires to this contactor?

Wiring is a straightforward process – just insert your stripped conductor into the terminal and tighten the screw to secure it.

How far down should I strip the insulation around a conductor before terminating it?

Main and circuit control cables both need a stripping length of 10mm. This ensures that the conductor makes proper contact.

Note

Eaton formerly known as Moeller

Eaton XT Series

Datasheet

Datasheet - 290062 XTCE015B10T
