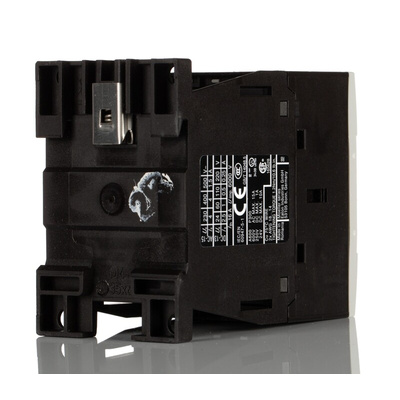

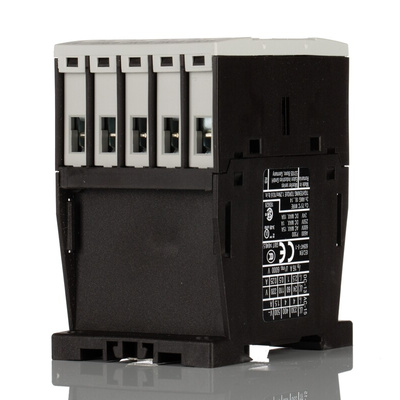

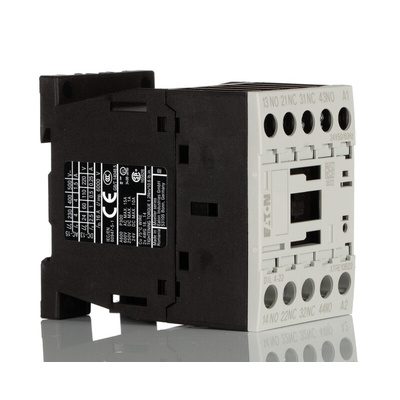

276403 XTRE10B22T, Eaton Overload Relay 2NO + 2NC, 6 A Contact Rating, 3 W, 24 Vac, 4P, Реле

Eaton Cutler-Hammer Miniature Overload Relays

The Cutler-Hammer XT miniature overload relays from Eaton feature non reversing and reversing mini contactors, mini overload relays and Snap-On accessories. The XT range of mini overload relays has a compact design which is best suited to be applied in light duty loads such as hoisting, packaging, heating, lighting and automation systems.

Economically and environmentally friendly
Compact design
Phase Failure Sensitivity
Direct Mount to XTMC Mini Contactors
Trip Class 10
9 Settings to Cover 0.24-12 A

Eaton Overload Relay, 6A Contact Current Rating, 3W Power Rating - XTRE Series - 276403XTRE10B22T

Features & Benefits

• Contact current rating of 16A for high current consuming motors
• 4-pole configuration makes it ideal for 3-phase industrial motors
• Wide operating temperature of -25°C to +50°C for use in challenging settings
• Functions with both AC and DC supply voltages for versatility
• IP20 rating indicates it's touch-proof and can withstand objects larger than 12mm in size

Is this relay flame-resistant?

Thanks to its thermoplastic housing, this device is flame-resistant and will stop burning in a short time in the event of a fire.

Note

Eaton formerly known as Moeller
