190929 M22-PV-K02, Eaton M22 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC, IP66, IP69

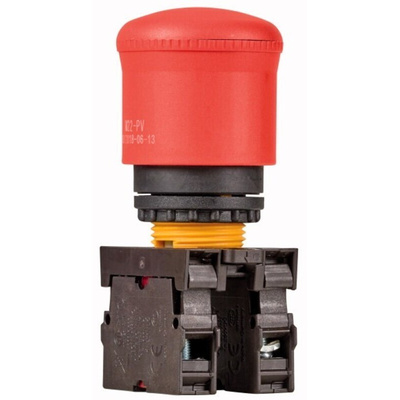

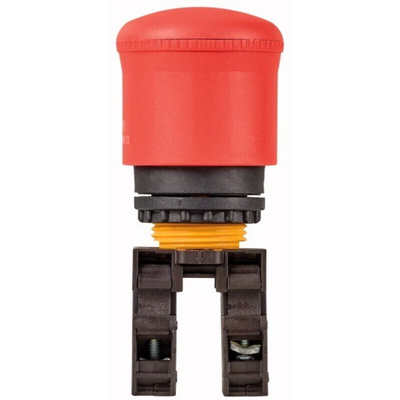

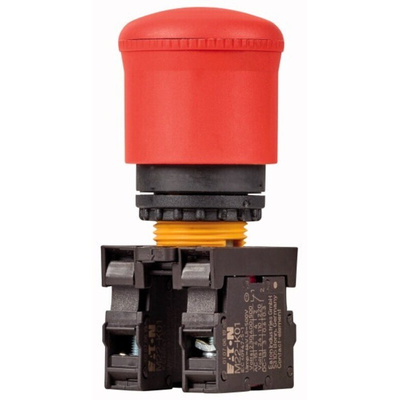

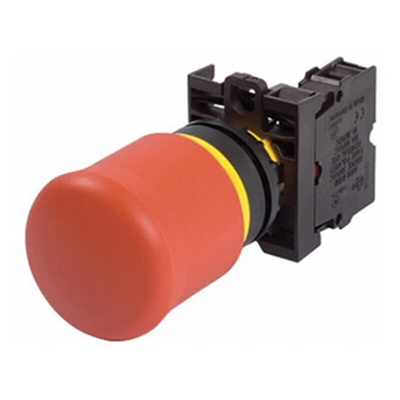

Eaton Emergency Stop Push Button, Mushroom Shaped, 2NC Configuration - M22 Series - 190929 M22-PV-K02

Looking for a reliable way to halt your equipment in the event of a hazard? Choose this emergency stop push button from Eaton. It's easy to use thanks to its ergonomic mushroom-shaped head and low actuating force of 50N or less. When a fault has been cleared and operating conditions are safe, you can easily reset the button using the straightforward pull-release mechanism. Its bright red button and yellow base ensure it's easy to spot in the event of an emergency. You'll commonly find units like this used in manufacturing facilities and on production lines.

Features & Benefits

• Compact cutout diameter of 22.5mm to save space on your panel
• Plastic material for resistance to wear and impact
• IP69K rating means it's dust-tight and protected against high-pressure, high-temperature water jets
• Robust lifespan of more than 100,000 operations for long-lasting performance
• Screw connection for secure, vibration-proof wiring

Can I use this emergency push button in extreme temperatures?

Yes. This device has a wide operating temperature range between -25°C and +70°C, so it's suitable for use in harsh condtions.

Part of the Eaton E-Stop family

Note

Eaton formerly known as Moeller

Machine Guarding and Safety Range Overview

Datasheet - Eaton M22-PV-K02

Instruction Sheet - RMQ- Titan M22-, M22S-, M22M- (M22-)
