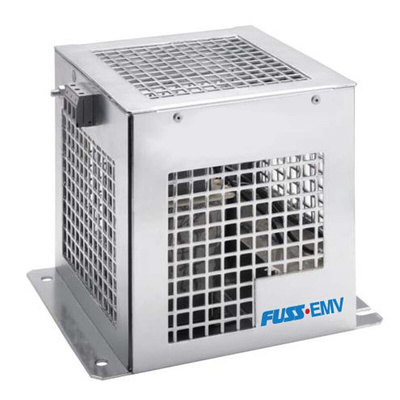

3AFSAP400-016.060, FUSS-EMV, 3AFSAP400 3 x 500 V ac 16A Line Reactor, Синусоидальный фильтр

8661808
Номер производителя: 3AFSAP400-016.060Производитель: FUSS-EMV
Цена за шт.
370866.00 руб. (С НДС) *
Количество 10+ 20+ 25+ 50+
Цена 355629.00 руб. 346143.00 руб. 332832.00 руб. 326553.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

3–Phase All Pole Sinusoidal Filter, 3AFSAP400 Series

All pole sine filters achieve excellent EMC properties, since both conducted and radiated disturbances are minimised. The usage is recommended for filtering the drives of for example elevators, fans, pumps and compressors, which are located in sensitive environments. This includes medical facilities, measuring laboratories, IT or residential areas.
Another field of application is found in spatially extended drive systems such as tunnels, wind power plants, mines where often long screened cable must be installed. Therefore the use of an all-pole sine filter eliminates the cost and complexity of installing screened cables.

Features & Benefits:

Unshielded cables of any length can be used, ideally ≥100m
Unshielded drive system respecting EN61800-3
No bearing current
Noise reduction up to 10dB

Caution

The switching frequency of the inverter has to be fixed at 6 kHz

Техническая спецификация
pdfDatasheet
Высота:
268мм
Глубина:
176мм
Длина:
205мм
Максимально допустимое напряжение:
3 x 500 В перем. тока
Максимальный токовый рейтинг:
16A
Рабочая температура - максимальная:
+40 (without power derating) °C, +60 (with power derating) °C
Рабочая температура - минимальная:
+40 (with power derating) °C, -20 (without power derating) °C
Размеры:
205 x 176 x 268мм
Серия:
3AFSAP400
