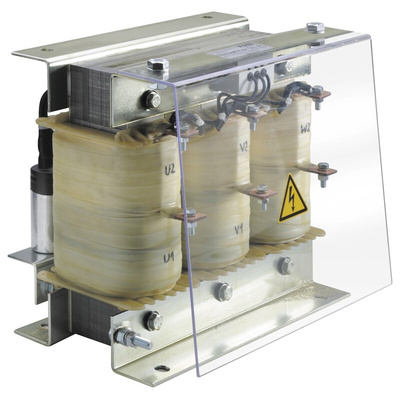

3AFS400-063, FUSS-EMV, 3AFS400 3 x 500 V ac 63A Line Reactor, Синусоидальный фильтр

8661849
Номер производителя: 3AFS400-063Производитель: FUSS-EMV
Цена за шт.
329778.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

3-Phase Sinusoidal Filter, 3AFS400 Series

The 3AFS400 Series of filters improves drive systems by increasing the applicable motor cable length and reduces motor noise. These filters can also protect and increase engine lifetime.

Features & Benefits:

Sinusoidal filters 3AFS400 change the output PWM voltage of frequency converters to a sinusoidal line-to-line voltage.
Sinusoidal filters enable the operation with very long motor lines. Shielded lines may be at least 300 m long and with a tuned switching frequency even longer.
The use of unshielded motor lines is not recommended in industrial applications. In this case an all-pole sinusoidal filter is available in combination with a common-code switching frequency filter 3ACMF for the generation of true sinusoidal power supplies. If the switching frequency is known a customized sinusoidal filter, to reach a bigger length, could be created.
Typical applications are noise reduced drives and the protection of sensible motors.

Note

Qualified for a motor speed of 120 Hz

Техническая спецификация
pdfDatasheet
Высота:
340мм
Глубина:
240мм
Длина:
300мм
Максимально допустимое напряжение:
3 x 500 В перем. тока
Максимальный токовый рейтинг:
63A
Рабочая температура - максимальная:
+40°C
Размеры:
300 x 240 x 340мм
Серия:
3AFS400
