0031.2320, Schurter 16A Panel Mount Fuse Holder for 6.3 x 32, 5 x 20mm Fuse, 1P, 500V ac, Держатель предохранителя

Schurter FUL Series

Schurter FUL series shock safe panel mount fuse holders, available fo 5 x 20 mm or 6.3 x 32 mm cartridge fuses. The FUL series are designed for high power applications, and have a voltage rating of 500 V ac. The FUL series are available with solder or quick connect terminals in a tin-plated copper alloy.

For appliances in unattended use
Low profile fuse holder with insulation walls
Panel Mount
IP67 Rated

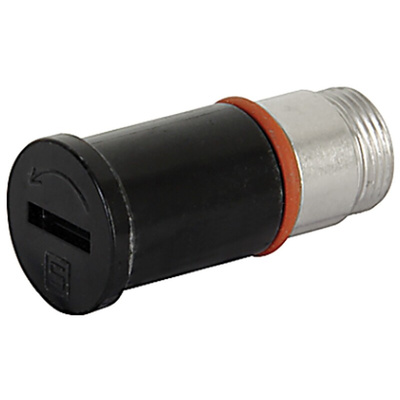

Slotted cap must be ordered seperately
RS 866-3595 for 6.3 x 32mm fuses
RS 866-3609 for 5 x 20mm fuses

Schurter FUL Series Slotted Cap Panel Mount Fuse Holder

The Schurter FUL series 16A panel mount fuse holder offers high current and voltage ratings of 16A and 500VAC/DC respectively. It is resistant to dust and water. This makes it ideal to use in harsh environments. The body of this holder is made of thermoset material and copper is used for contact. It has screw type fuse carriers.

Features and Benefits

• Compatible fuse dimension is 6.3mmx32mm
• High rated power acceptance
• Solder terminal type

Applications

• General circuit protection
• Illuminated signs
• Lighting
• Vehicle electrical circuits

Certifications

• EN approved
• IEC60335-1 certified
• IP67 rated
• UL approved
• VDE(600) compliant

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
