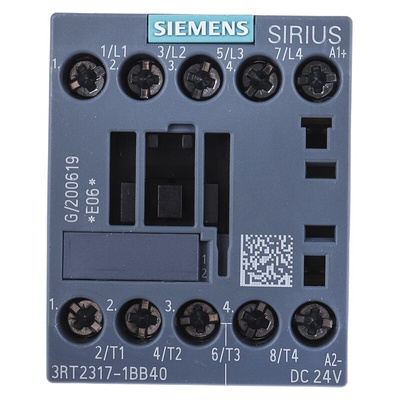

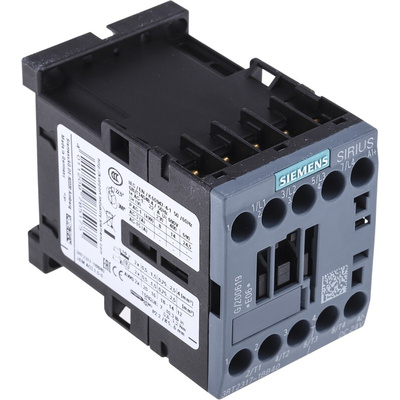

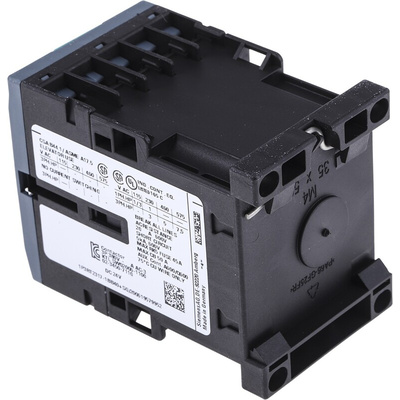

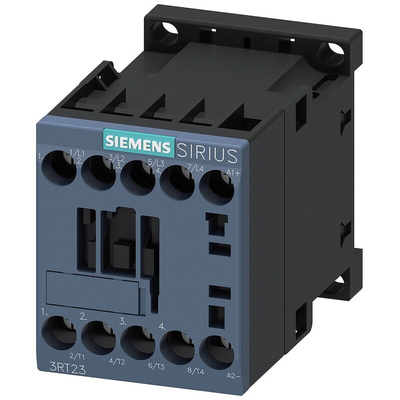

3RT2317-1BB40, Siemens 3RT2 Series Contactor, 24 V dc Coil, 4-Pole, 12 A, 5.5 kW, 4NO, 690 V ac, Контактор

Siemens Contactor, 690V AC Contact Voltage, Screw Terminals - SIRIUS Innovation Series - 3RT2317-1BB40

When you need all-around motor control and protection, pick up this contactor from Siemens. It takes charge by switching the electrical supply to your motor circuit on and off, so controls high-voltage devices safely without you needing to connect them directly to a PLC. The unit's optimised design gives you the benefit of reduced power consumption and low carbon emissions, so you can rest assured you're making an environmentally friendly choice. For safety, it guards against voltage surges, which minimises the risk of damage to equipment. This contactor is just the job for switching electrical units like industrial fans, pumps and motors.

Features & Benefits

• Responds swiftly, with an opening delay of just 7 to 13ms
• IP20-rated front and terminals are protected against human touch and anything larger than 12mm
• Can be rotated when mounted on a vertical surface, for ease of use
• Screw terminals make it simple to wire
• Modular design to combine easily with other products from the SIRIUS range

How many switching cycles is this contactor capable of?

This contactor is built for durability in harsh environments. It has a typical service life of up to 30 million switching cycles.
