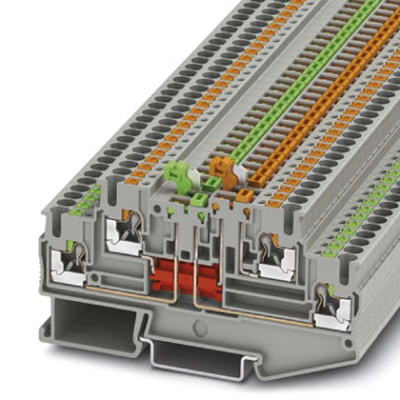

3210258, Phoenix Contact CLIPLINE PTT Series Grey Knife Disconnect Terminal Block, 2.5mm², 2-Level, Push In Termination

PTT Series Disconnect Terminal Blocks

The PTT series is a range of push-in connection, disconnect terminal blocks. These din-rail terminal blocks are characterized by the system features of the CLIPLINE and by easy wiring of conductors with ferules or solid conductors that can be done without the use of any tools.

Features and Benefits

• Push-in connection din-rail terminal blocks
• Clipline System
• Tool-free wiring of conductors
• Compact design and front connection enable wiring in confined space
• Convenient circuit separation, thanks to lever type disconnect knife
• Clear identification of disconnect point, thanks to colour highlighting
• RoHS compliant

Standards

IEC 60947-7-1, V0 UL 94 flammability rating.

Approvals

UL, cUL, EAC, CSA, cULus.

Phoenix Contact Double-Level Terminal Block, 0.14 to 4mm² Conductor CSA, 26 to 12AWG - PTT 2,5-2MT - 3210258

Quickly break circuits in your rail-mounted devices with this knife disconnect terminal block from Phoenix Contact. It features two simple lever disconnect switches that separate joined conductors, letting you easily adjust your appliances. The unit's connections are colour-coded to clearly indicate the active status of each pair of conductors for easy troubleshooting. With two levels of connections, this is a compact way to join multiple devices in cabinets with limited space.
The block is compatible with wires with cross-sections between 0.14 and 4mm² to connect apparatus of different sizes without having to rewire everything. Using ferrule connector ends and its push-in termination method, the component achieves secure connections with minimal effort. As the connections made aren't permanent, you can simply remove the wires when you need to tweak your setup.

• Meets EN 50155 standards for shock resistance to protect your connections from disruptive impacts
• Wide operating temperature range between -60°C and +125°C makes it ideal for demanding environments
• Certified to UL94 V0 flammability standard for increased system safety in the event of a fire
