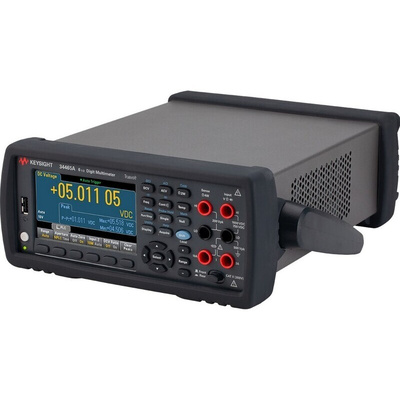

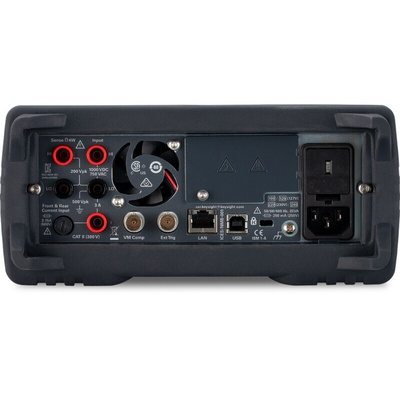

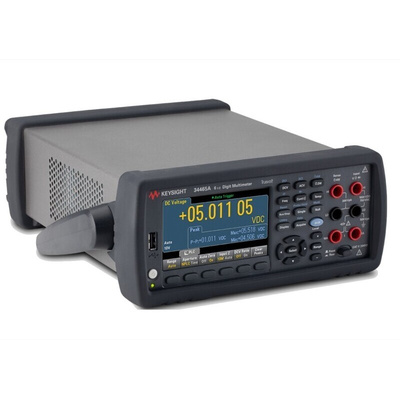

Keysight Technologies 34465A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated, Мультиметр

Keysight 34465A True RMS Digital Multimeters with Truevolt

Keysight 34465A DMMs offer unprecedented levels of accuracy, speed and resolution. They can measure very low current down to a 1 μA range, enabling their use on very low power devices. The ability to auto-calibrate during the measurement allows the 34465A to maintain a calibrated measurement while the instrument may be going through temperature drift/changes.

Graphical capabilities, including trend charts and histograms, facilitate greater user insight gained more quickly. This DMM model provides a data logging mode for easier trend analysis and a digitising mode for capturing transients.

Instrument upgrade options (available separately) includes: 3446MEMU ( 867-2284 ) which extends memory to 2 million readings. Buyers of upgrades receive an entitlement certificate, register via Keysight website and obtain a software keycode to enable the upgrade.

Features and Benefits:

• Resolutions up to 6.5 digits
• Truevolt technology for greater accuracy and quicker measurement insights
• Reading rates up to 5000 readings/s standard (50,000 with optional upgrade3446DIGU)
• Memory up to 50,000 readings standard (2 million with optional upgrade 3446MEMU)
• Voltage ranges from 100 mV to 1000 V
• Current ranges from 1 μA to 10 A
• USB and LAN interfaces
• BenchVue software purchased separately
• Statistical graphics - histogram, bar chart, trend chart
• 4.3-inch colour high resolution monitor
• 30 ppm basic DCV accuracy

Approvals

UL, CSA, CE

Supplied with

Standard 3-year Warranty (90 days for unserialised accessories)
34138 Test Lead Set
USB Cable
Power Cord
Certificate of Calibration

Keysight Technologies Multimeter, 100mV to 1000V DC Voltage Measurement Range, USB and LAN Connectivity - Truevolt Series - 34465A

Take charge of your electrical testing tasks with this multimeter from Keysight Technologies. It has a broad voltage measurement range of 100mV to 1000V DC, so it gives you the power to test both low and high-voltage devices. As it's battery-powered, you don't need a mains connection, so there's no need to fiddle with cables to use it. Thanks to the unit's compact dimensions of 103.8 (H) x 261.2 (W) x 303.2mm (D), it won't crowd your worktop.

Features & Benefits

• Graphical colour display makes measurements a cinch to read
• USB and LAN interfaces for hassle-free data transfer to a PC
• Reading rate of up to 50,000 readings per second for up-to-date results
• Resolution of 6.5 digits for precise readings

Applications

• Telecommunications
• Electrical engineering
• HVAC systems

How much memory does this multimeter have?

The device can store up to 50,000 readings at once, so you can use it to collect large amounts of results without having to regularly offload the data to an external storage device.
