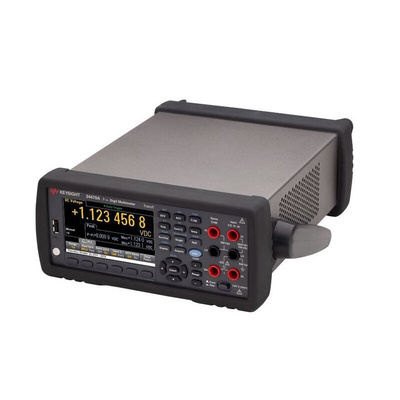

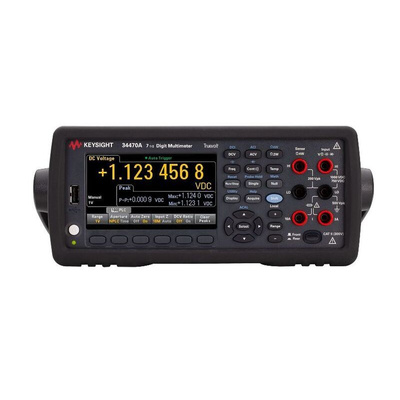

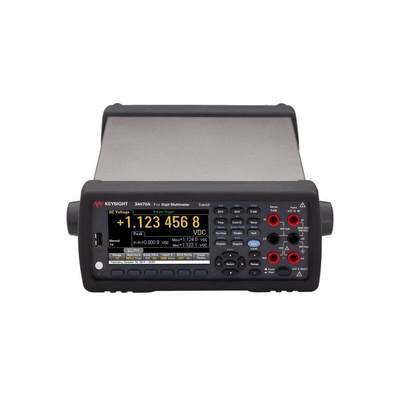

Keysight Technologies 34470A Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

Keysight 34470A True RMS Digital Multimeters

Keysight 34470A DMMs offer unprecedented levels of accuracy, speed and resolution. They can measure very low current down to a 1 μA range, enabling their use on very low power devices. The ability to auto-calibrate during the measurement allows the 34470A to maintain a calibrated measurement while the instrument may be going through temperature drift/changes.

Graphical capabilities, including trend charts and histograms, facilitate greater user insight gained more quickly. These DMM models provide a data logging mode for easier trend analysis and a digitizing mode for capturing transients.

Instrument upgrade options (available separately) includes: 3446MEMU ( 867-2284 ) which extends memory to 2 million readings. Buyers of upgrades receive an entitlement certificate, register via Keysight website and obtain a software keycode to enable the upgrade.

Features and Benefits

• Resolutions up to 7.5 digits
• Reading rates up to 5000 readings/s standard (50,000 with optional upgrade3446DIGU)
• Memory up to 50,000 readings standard (2 million with optional upgrade 3446MEMU)
• Voltage ranges from 100 mV to 1000 V
• Current ranges from 1 μA to 10 A
• USB and LAN interfaces
• BenchVue software purchased separately

Approvals

UL, CSA, CE

Supplied with

Test leads with accessories, documentation and IO libraries CDs, USB cable (34470A)

Key Features of the 34470A

Further Insight

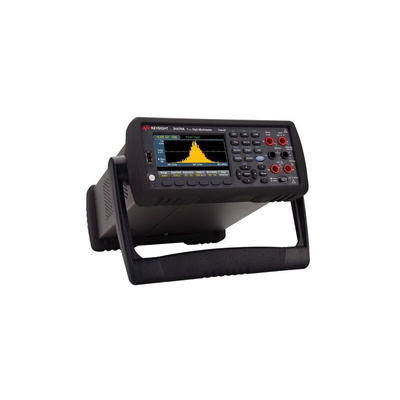

The 34470A offers a 4.3"" display with graphical capabilities such as trend and histogram charts offering further insight quickly. Trends can be detected faster, for example, histograms can be used to assess the variance of a measured value accurately and faster.

Measuring low and high-power devices

The ability to measure low voltage, 100 mV, allows you to make measurements on low low-power devices. It is able to measure devices up to a 1000 V with a resolution from 1 μV.

Digitising Data

Easy to export measurement data from one or more times correlated devices from multiple devices to an external USB stick, PC or to mobile devices. Data or display curves can be exported to Microsoft Excel, Word or MATLAB.
