DPM 942-FPSI, Lascar DPM Series Digital Ammeter DC, LCD Display 3.5-Digits ±0.1 %, Амперметр

8673063
Номер производителя: DPM 942-FPSIПроизводитель: Lascar
Цена за шт.
25155.00 руб. (С НДС) *
Количество 5+ 10+
Цена 24141.00 руб. 23085.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

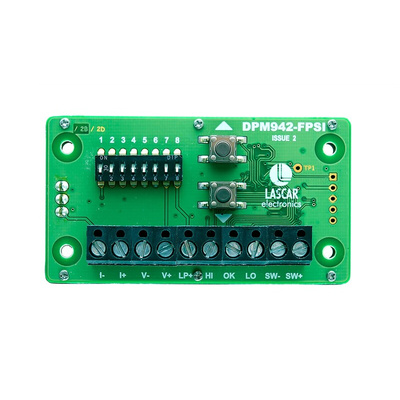

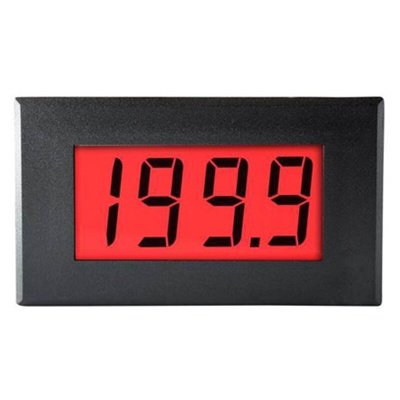

19mm, 3.5 Digital Display, Lascar 942-FPSI

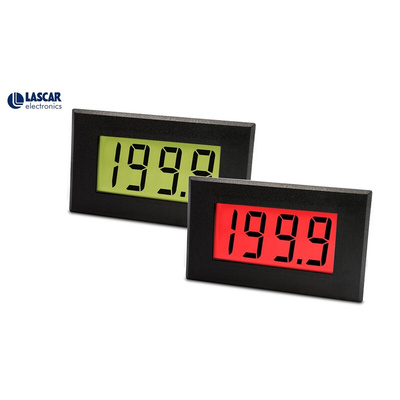

The DPM 942-FPSI is a 3.5 digit LCD current loop meter that can also be used for dual colour go-stop status indication. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance. During standard operation the backlight is green, however if the reading goes beyond the user programmable thresholds, the display will turn red. Three open collector outputs are included, that indicate high, ok and low conditions. Both the backlight colour and outputs can be inverted.


4-20mA measurement range
19mm digit height
Dual colour backlight with programmable status indication
Open collector outputs that mirror the backlight status
5V supply voltage
Module setup with DIP switch and two push buttons

LCD 4 to 20mA Current Loop Powered Meters

Техническая спецификация
pdfDatasheet
Высота выреза:
40мм
Глубина:
11.5мм
Диапазон измерений:
4 → 20мА
Максимальная температура:
+50°C
Минимальная температура:
0°C
Серия:
DPM
Тип тока:
Постоянный ток
Точность измерения:
±0.1 %
Ширина выреза:
72мм
