DPM 750S-EB-W, Lascar DPM750S-EB Series Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %, Вольтметр

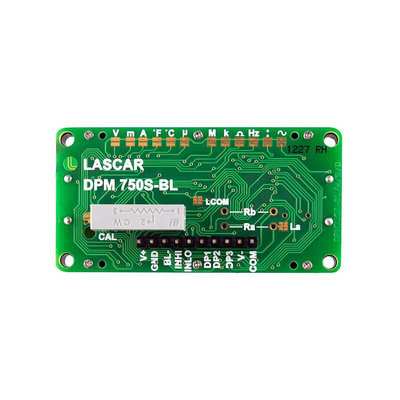

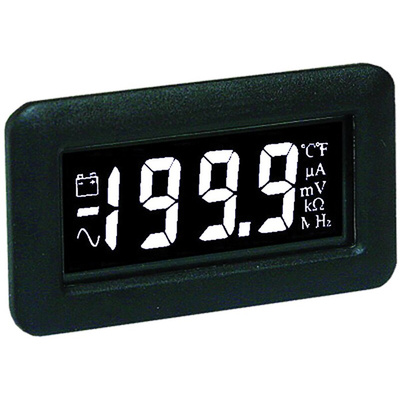

12.7mm 3.5 Digit LCD Voltmeter Module, Lascar DPM750S-EBEB

The DPM 750S-EB features an enhanced black LCD and 200 mVdc measurement range with auto-zero and autopolarity. Decimal points are user selectable.
The meter features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. A low drift bandgap reference circuit ensures accurate readings over a wide temperature range. Enhanced contrast negative mode LCD with white LED backlighting ensures excellent readability under low light conditions.

12.7mm digit height
LCD with LED backlighting in different colour
200 mVdc full scale reading
5 Vdc operation
Auto-zero and Auto-polarity
Programmable decimal points
Enhanced black LCD with LED Backlighting
Low battery warming
Bandgap reference
Supplied with a plastic mounting bezel
Optional waterproof seal to IP67, stock-no. 446-2165

LCD 5.5 to 18 mm Digit Height

DPM 750S-EB-W Datasheet
