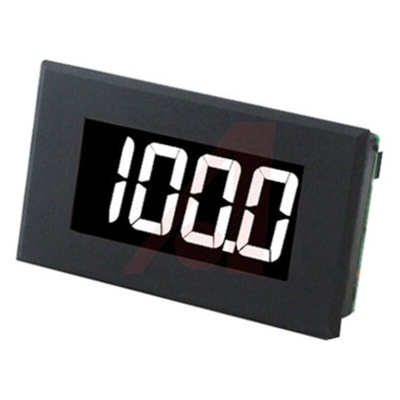

DPM 950S-EB-W, Lascar DPM950S-EB Series Digital Voltmeter DC, LCD Display 3.5-Digits ±0.1 %, Вольтметр

19mm, 3.5 Digit Meter with LED backlighting, Lascar DPM 950S-EB-X

The DPM 950S-EB features an enhanced black LCD and 200 mVdc measurement range with auto-zero and auto-polarity. Decimal points are user selectable.
The meter features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Enhanced contrast negative mode LCD with white LED backlighting ensures excellent readability under all light conditions. The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the bezel, window and clips provided.
The DPM 950S-EB backlighting is available in seven different options. These include white, red, orange, magenta, yellow, green and blue.

3.5 digit LCD Voltmeter, 19 mm digit height
LCD with LED backlighting in different colours
200 mVdc full scale reading (F.S.R.)
IDC Interface
Auto-zero, Auto-polarity
Single Rail 5 Vdc supply
DIL pin connections
Alarm Annunciator

LCD 5.5 to 19mm Digit Height

All have an operating temperature range of 0 to 50°C unless specified otherwise.

DPM 950S-EB Datasheet
