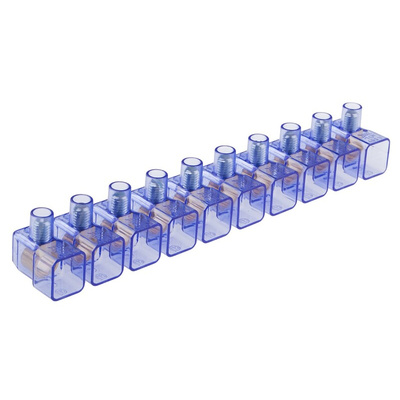

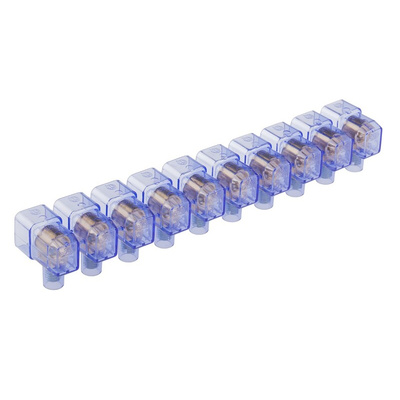

RS PRO Non-Fused Terminal Block, 10-Way, 10 mm² Wire, Screw Termination

RS PRO 10 Way Non-Fused Terminal Block, 10 mm², Panel Mount, Screw Terminals, PC, 450 V

This terminal block from RS PRO connects and insulates open wires. It prevents electric shocks and fires thanks to the polycarbonate (PC) casing that insulates and directs the flow of current, offering a safe alternative to insulation tape.


Its robust construction means the terminal block can withstand temperatures of up to +85°C. This makes it appropriate for outdoor and indoor environments not exposed to extreme conditions. The wires are held firmly in place by brass screw clamps, so they won't come loose even when the unit is exposed to vibrations or bumps.


You'll find this product used in homes, workshops and garages. As it complies with EN 60998-1: 2004 and EN 60998-2-1: 2004 standards, it has been tested to ensure safe use with domestic appliances.

Features and Benefits

• Brass contact material


• Enclosed


• Not fused


• Polycarbonate (PC) material


• Maximum operating temperature of +85°C


• Panel mounting type


• Ten ways


• Screw termination method


• End connector terminal block strip type


• Voltage rating of 450 V


• Wire size of 10 mm²
