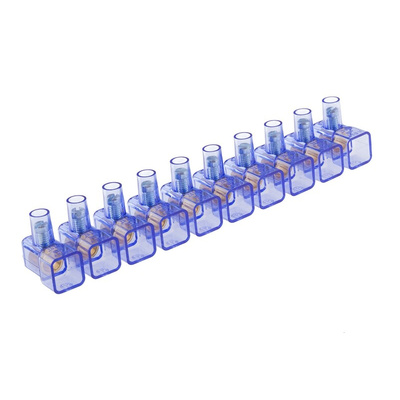

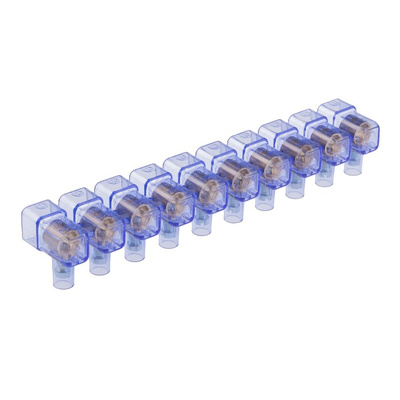

RS PRO Non-Fused Terminal Block, 10-Way, 6 mm² Wire, Screw Termination

RS PRO 10 Way Non-Fused Terminal Block, 6 mm², Panel Mount, Screw Terminals, PC, 450 V

Need a safe and reliable way to connect two or more wires? Choose this termination block from RS PRO. It has a polycarbonate (PC) casing that insulates and directs the flow of current, preventing fire hazards and electrical shocks.


The terminal block can withstand temperatures of up to +85°C, meaning it's appropriate for outdoor and indoor settings subjected to moderate heat. It has brass screw clamps to keep the wires from coming loose when the unit is exposed to vibrations or bumps, so you can be sure your wires will stay firmly in place.


This product meets EN 60998-1: 2004 and EN 60998-2-1: 2004 standards, meaning it's safe for use with appliances in domestic settings. Use this item in your garage, home or workshop.

Features and Benefits

• Brass contact material


• Enclosed


• Not fused


• Polycarbonate (PC) material


• Maximum operating temperature of +85°C


• Panel mounting type


• Ten ways


• Screw termination method


• End connector terminal block strip type


• Voltage rating of 450 V


• Wire size of 6 mm²
