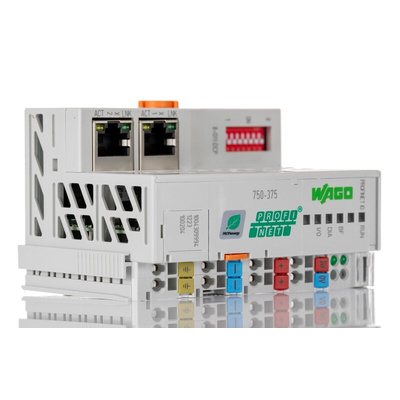

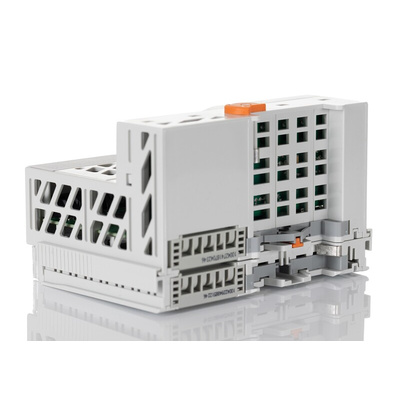

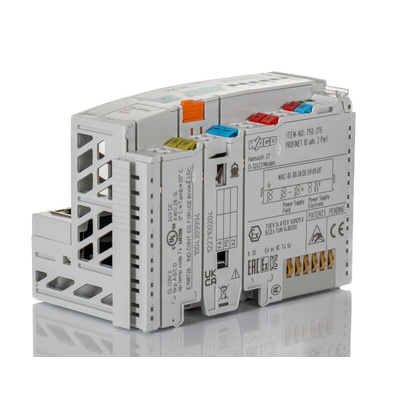

750-375, Wago PLC CPU

Wago Coupler

The Wago Fieldbus coupler connects the WAGO-I/O-system 750 to PROFINET I/O. It identifies the connected I/O modules and creates local process images for maximum two I/O controllers and one I/O supervisor according to pre-set configurations. The images processed may include a mixed arrangement of analogue, digital or speciality modules. Analogue and speciality module data are sent via words and/or bytes
digital data is sent bit by bit. It also features an integrated 2-port switch, simplifying the creation of a line structure without additional network components.
Wago I/O system range
Remote I/O modular system for all functions.
Makes it easier to connect all I/Os thanks to its Cage clamp system®
Communication with PC, PLCs thanks to the various communication protocols.
Colour codes according to the type of signal.
Do not forget to order the end module.

Features and Benefits

Baud rate 10Mbit/s (ETHERNET protocols), 100Mbit/s full duplex (PROFINET IO)
Complex applications can be divided into multiples tasks
Programmable response in the event of fieldbus failure
Signal pre-processing reduces fieldbus transmissions
Simple
self-sufficient control
Accepts protocols
LLDP, SNMP, MRP

Applications

Industrial automation
Marine industry

Certifications

UL508 approved
CE

750-375 Data Sheet

750-375 Manual

RS OUR OFFER - WAGO 750
