4782.0100, Schurter C13 Cable Mount IEC Connector Socket, 10A, 250 V, Разъем

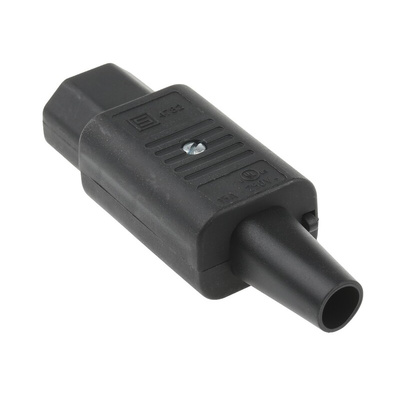

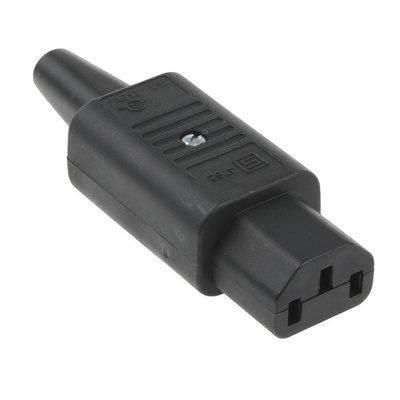

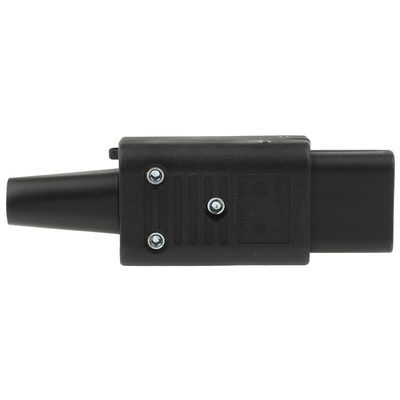

Schurter IEC Female Socket Connector

The Schurter IEC socket is a straight female C13 connector and a cable mount device. It has a voltage rating of 250VAC and current rating of 10A. Its body is made from durable thermoplastic.

Features and Benefits

Rewireable connector
Screw-on version, from the front side
Maximum cable diameter is 10mm
Insulation resistance is greater than 103MΩ
Contact resistance is lesser than 10mΩ
Operating temperature ranging between -25°C and 70°C

Applications

Domestic appliances
Instrumentation amplifiers
Computer hard drives

Certifications

VDE
UL approved
CSA certified
