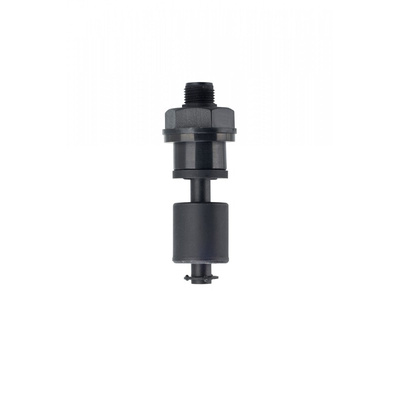

RSF103YNP, Sensata / Cynergy3 Cynergy3 RSF100 Series Vertical Nylon Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, NO/NC, 240V AC - RSF100 Series - RSF103YNP

Need a liquid level sensing device for a small tank? Choose this miniature float switch from Sensata Cynergy3. Its compact size of 75 (length) x 21.5mm (width) means you can use it in tanks where space is at a premium. For versatility, you can choose between an NO and NC switch action by simply inverting the float and reattaching it to the stem. As it's designed for external mounting, there's no need to access the inside of the tank. A compression seal ensures a reliable and air-tight connection to prevent leaks. Use this float switch in vending machines or domestic appliances.

Features & Benefits

• Supplied with an M12 connector for quick and convenient connection to a circuit
• Nylon body is resistant to abrasion and corrosion for long-lasting performance in harsh conditions
• Wide operating temperature range of -20°C to +75°C for use in demanding environments

What size mounting hole does this float switch need?

To mount this float switch, you need to cut a hole with a diameter of 23mm in your tank. Your tank wall should have a thickness of 3mm or less.
