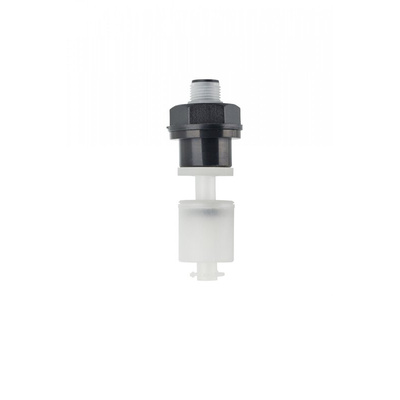

RSF108YNP, Sensata / Cynergy3 Sensata/Cynergy 3 RSF100 Series Vertical Polypropylene Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

cynergy3 RSF100 Vertical Float Switches

RSF100 series float switches from cynergy3 are a range of miniature vertical float switch. These float switches require external mounting and feature a single switching point.

• This series features an N/O (normally open) contact. However, this can easily be reversed to N/C (normally closed) by inverting the float and reattaching it to the stem.
• The float attached to this switch is small and compact allowing you to use this float switch in applications where space is at a premium.
• You can mount this float switch externally using a compression seal at the top or bottom of a tank. You do not need access to the inside of the tank that you will be using the float switch in.
• A choice of 25 W or 100 W models are available.
• These float switches are available in a range of materials; nylon, polypropylene, PPS and PVDF. The choice of construction material will enable you to choose the right float switch for your application. Float switches made from PVDF can withstand acids and alkalis.
• Dependent on model, this range of float switches feature an M12 connector or PVC/PTFE cable.

RSF100 Series External Mount Mini Switch Datasheet
