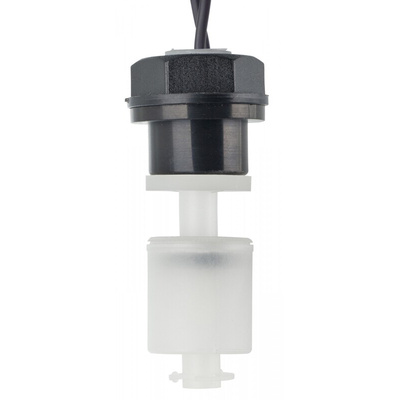

RSF108Y100JN, Sensata / Cynergy3 Sensata/Cynergy 3 RSF100 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Vertical Float Switch, 1m Cable Length, Polypropylene - RSF100 Series - RSF108Y100JN

Use this vertical float switch from Sensata Cynergy3 for accurate liquid level detection in small tanks. This magnetically controlled device has a reed switch to automatically turn the pump on or off to prevent spills or excess emptying. It has a cable that's sheathed in PVC for durability and resistance to wear. The cable is 1m long to give you easy access to a power source. This type of float switch is commonly found in water treatment plants and beverage production facilities.

Features & Benefits

• Broad operating temperature range of -20°C to +100°C for use in demanding conditions
• Nitrile rubber gasket is resistant to chemicals and wear to prevent leakages
• Low switching current of 600mA for energy efficiency
• Compact dimensions of 75 (length) x 21.5mm (width) for installation in tight enclosures
• Switching function can be reversed by inverting the float for versatility

Do I need access to the tank's interior to install this float?

You can mount this float externally using compression seals, so you don't need access to the inside of the tank.
