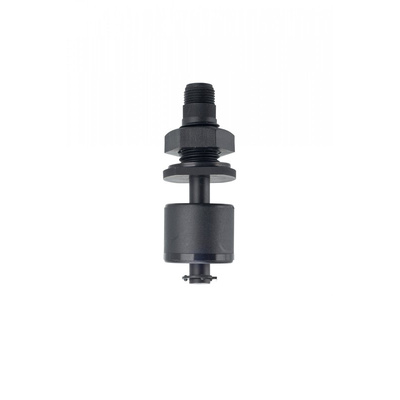

RSF153YFP, Sensata / Cynergy3 RSF150 Series Vertical Nylon Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Compact Vertical Float Switch - Internal Fitting

M12 Electrical Connection
WRAS approved Versions available
N/O switching can be changed to N/c by inverting float
Manufactured in Nylon, PPS and Polypropylene with Nitrile seals

The RSF150 series of compact vertical float switches from Cynergy3 have a single switch point and are designed to be vertically mounted on either the top or bottom of the tank (access to the inside of the tank is required for installation).
Suitable for use in vending machines, printing systems, chemical dosing equipment and various other applications

Warning

The cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Sensata Cynergy3 Vertical Float Switch, 240V AC, 600mA - RSF150 Series - RSF153YFP

This float switch from Sensata Cynergy3 monitors liquid levels to help you control the filling and emptying of your tank. Its vertical design means it mounts to the top or bottom of your tank, so it's a good choice for use in containers where there's no side access. For versatility, you can change the switch action by simply inverting the float and reinstalling it. This component is commonly used in food and beverage processing as well as vending machines.

Features & Benefits

• Wide operating temperature range of -20°C to +75°C for use in demanding environments
• Robust nylon body material is resistant to water, chemicals and oils
• M12 circular connector for a simple electrical connection

Is this float switch protected against leaks?

Yes, this switch features a nitrile gasket that's resistant to corrosion, wear and chemicals. This helps to ensure a durable seal for reliable leak prevention.

What's the maximum switching voltage of this float switch?

This float switch has a maximum switching voltage of 240V AC and 120V DC, making it suitable for use in many everyday electrical setups.

RSF150 Series Internal Vertical Float Switch Datasheet
