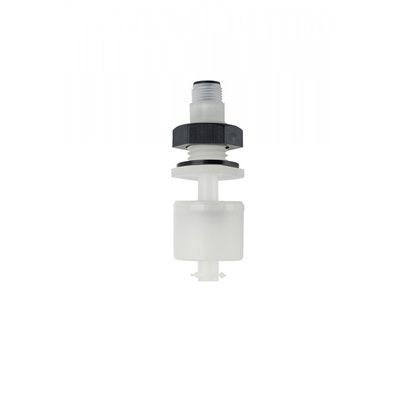

RSF158YFP, Sensata / Cynergy3 RSF150 Series Vertical Polypropylene Float Switch, NO/NC, 240V ac Max, 120V dc Max

Compact Vertical Float Switch - Internal Fitting

M12 Electrical Connection
WRAS approved Versions available
N/O switching can be changed to N/c by inverting float
Manufactured in Nylon, PPS and Polypropylene with Nitrile seals

The RSF150 series of compact vertical float switches from Cynergy3 have a single switch point and are designed to be vertically mounted on either the top or bottom of the tank (access to the inside of the tank is required for installation).
Suitable for use in vending machines, printing systems, chemical dosing equipment and various other applications

Warning

The cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Sensata Cynergy3 Float Switch, 240V AC Maximum Switching Voltage, M12 Connection - RSF150 Series - RSF158YFP

Precisely manage the flow of liquid in your application with this vertical float switch from Sensata Cynergy3. It closes at 15mm and opens at 26mm to keep your liquid levels from becoming too low or too high. The device has a switching voltage of up to 240V AC and 120V DC, so it's suitable for use in low-power applications. For versatility, you can reverse its switching action by inverting the float. This float switch is suitable for use in applications such as vending machines and the chemical industry.

Features & Benefits

• Polypropylene housing is resistant to chemicals and wear
• M12 connector for a simple electrical connection
• Wide operating temperature range between -20 and +100°C for use in demanding environments
• Durable nitrile gasket forms a tight seal to prevent leaks

What types of liquids is this float switch compatible with?

This float switch is compatible with liquids that have a minimum specific gravity of 0.8. This means you can use it with liquids such as water, alcohol and oils, so it's a versatile choice.
