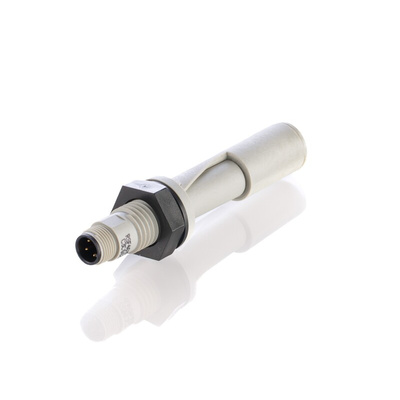

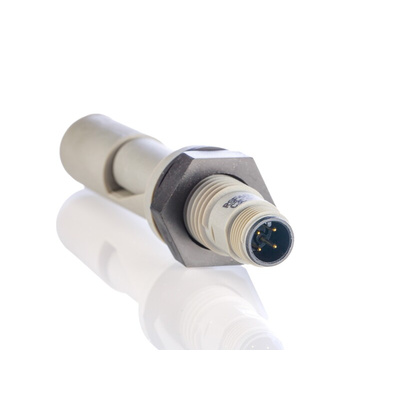

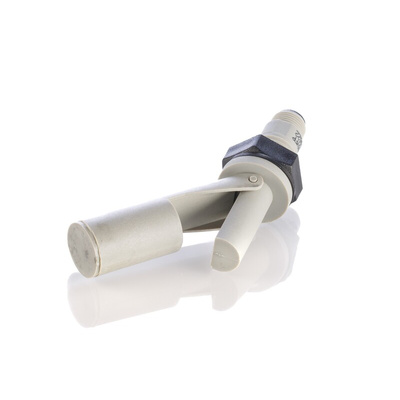

RSF46YFP, Sensata / Cynergy3 Cynergy3 RSF40 Series Horizontal Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Sensata Cynergy3 Horizontal Float Switch, 240V AC, 120V DC - RSF40 Series - RSF46YFP

Easily detect liquid levels inside your industrial container using this float switch from Sensata Cynergy3. It's most commonly used when filling or emptying a container to ensure liquid levels aren't too high or too low. The polyphenylene sulfide (PPS) material is resistant to chemicals and wear for use in demanding applications, and a nitrile gasket prevents leaks to ensure optimal performance. Mount this horizontal switch to the side of your tank in applications such as vending machines and commercial washing machines.

Features & Benefits

• Minimum fluid SG (specific gravity) of 0.85 means it stays afloat in a variety of liquids
• Wide operating temperature range of -10°C to +120°C for use in a variety of demanding environments
• NO/NC (normally open/normally closed) contacts for a versatile configuration
• Reversible switch action by rotating the switch for increased flexibility

What's the maximum voltage rating of this float switch?

This float switch has a maximum voltage rating of 240V AC (alternating current) or 120V DC (direct current), making it suitable for use in high-voltage applications.
