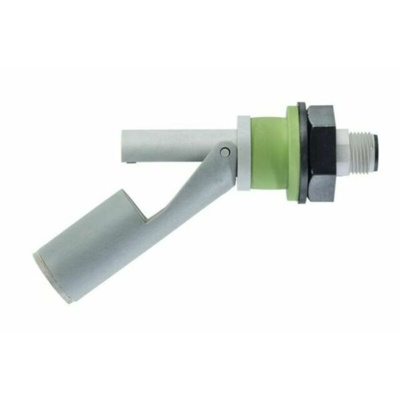

RSF76YVP, Sensata / Cynergy3 Cynergy3 RSF70 Series Horizontal Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

Sensata Cynergy3 Horizontal Float Switch, NO/NC, 600mA - RSF70 Series - RSF76YVP

Use this horizontal float switch from Sensata Cynergy3 to regulate liquid levels in a tank. It's designed for external mounting on the side of a tank wall, making it a good choice for situations where there's no access to the inside of the tank. A compression fitting helps to secure the float switch in place and prevents leaks for optimal performance. The polyphenylene sulfide body is resistant to chemicals and oil, making it suitable for use in agriculture and water treatment applications.

Features & Benefits

• Wide operating temperature between -10°C and +120°C for use in demanding environments
• Switch action is reversible by rotating the switch 180º for versatility
• Switching voltage of 240V AC and 120V DC for use in low-power systems
• Must-close level of 9mm and must-open level of 24mm to keep liquid levels within a controlled range

What liquid densities is this float switch compatible with?

This float switch is compatible with fluids that have a minimum specific gravity of 0.85. This includes substances such as water, milk and vegetable oils.
