MS20C, Sensata / Cynergy3 Cynergy3 MS Series Cable Mount Polypropylene Float Switch, Float, 5m Cable, NO/NC, 250V ac Max, 110V dc Max

Cynergy3 MS Series Float Switches

The Cynergy3 MS series of float switches are designed for large tanks, cisterns or reservoirs, and can be installed on submersible pumps. The MS float switches are capable of reaching 100m in depth.
MS float switches come with a 5m PVC cable.

What is it made from?
The flow switch case is made from blow-moulded HDPE (polyethylene). The unit is hermetically sealed. The cable is made from PVC and has a protective earth conductor. Part numbers ending with the letter “U” have PUR cables suitable for use in fuel oils.

What temperatures can it operate in?
All MS float switches operate from 0°C to +45°C / +32°F to 113°F.

What contact types are there?
The 5th digit of the part number represents the contact type:
A - Normally Open (N/O)
B - Nortmally Closed (N/C)
C - Changeover (C/O)

Approvals:
MS float switches have UL, VDE and CENELEC approvals. Part numbers ending with a "W" are WRAS approved cable coverings.

Versions Available:
(205-6910) MS10A
(338-9801) MS20A
(338-9794) MS10B
(869-7609) MS20C
(379-4001) MS10AW
(379-4017) MS10BW 

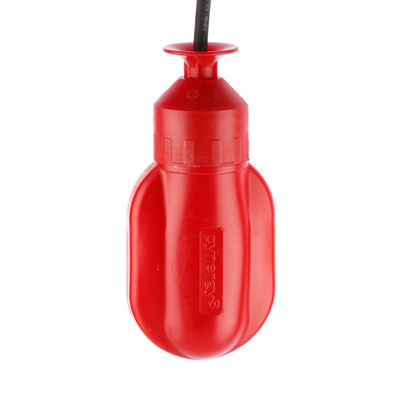

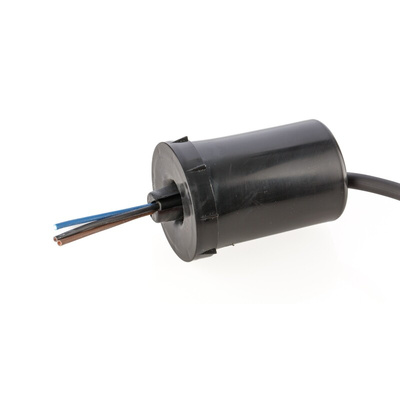

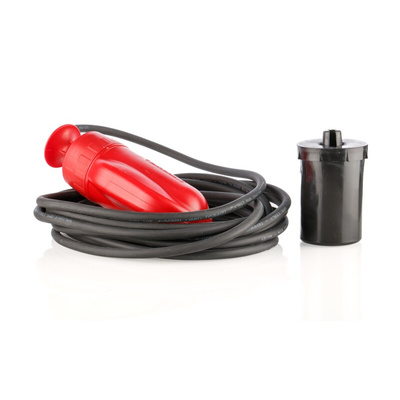

Sensata Cynergy3 Cable Mount Float Switch, Polypropylene, 5 m - MS Series - MS20C

To efficiently manage the level of liquid in large tanks, turn to this Sensata Cynergy3 float switch. It's suitable for cable mounting, so you can fix the float device in your tank and attach the accompanying 5 m cable to a power source. The casing is made from blow-moulded HDPE (high-density polyethylene) for durability and resistance to abrasion, ensuring a long service life. It's suitable for use at a depth of up to 100 m, making it a good choice for use with your submersible pumps and reservoirs.

Features and Benefits

• PVC (polyvinyl chloride) cable sheath for durability and flexibility
• Hermetically sealed casing to prevent water or air damage
• Versatile CO (changeover) mechanism enables you to switch between NO (normally open) and NC (normally closed) functions
• Wide operating temperature range of 0°C to +55°C for use in a range of applications

How does this float switch work?

The switch has a built-in microswitch that responds automatically to the drop or rise in fluid. This microswitch activates a steel ball that closes or opens the float switch.
