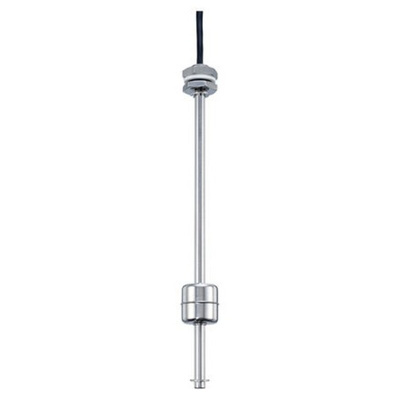

SSF67B25B75, Sensata / Cynergy3 SSF67 Series Vertical Stainless Steel Float Switch, Float, 1m Cable, NO/NC, 250V ac Max, 120V dc Max

Dual Position Stainless Steel Float Switch

Designed to give the user a number of switching options to cater for a variety of system requirements. These switches are most suited for use with aggressive liquids and hygienic applications.

Two Independent Switching Points
Lower Float Make on Fall, and Upper Float Make on Rise
Minimum Fluid SG: 0.80
Switch Differential (each level) Nominal: 1mm
Suitable for High and Low Level Alarm and Control Signal
Stainless Steel 316L for Use with Aggressive Liquids, or in Hygienic Applications
Vertical Mounting, M16 x 2 Thread
Temperature Range: -20 to +135°C
Nitrile Gasket
’Safe Area’ for Use in Petrochemical, Storage, and Process Control Applications

Note

All ratings in tech. spec. table are for resistive loads only

Warning

The Cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Sensata Cynergy3 Float Switch, Stainless Steel Body Material, 25VA Maximum Switching Power - SSF67 Series - SSF67B25B75

To accurately control fluid levels in your system, turn to this float switch from Sensata Cynergy3. It comes with a cable sheathed in PVC for resistance to impact and wear. As the stainless steel body is highly resistant to corrosion, it's a good choice for use in harsh industrial environments like the petrochemical industry. It's also easy to clean for use in hygienic applications. This unit can be configured to indicate high and low levels and has controls that can fill and empty tanks, making it a versatile choice.

Features & Benefits

• Maximum switching current of 600mA for energy efficiency
• Nitrile gasket is resistant to chemicals and wear for a leakproof seal
• Maximum pressure of 10 bar for use in high-pressure applications

How is this component mounted?

This switch is designed for vertical mounting on the inside of the tank via an M16 x 2 thread, so it's simple to install without the need for complex tools.

How long is the cable on this float switch?

This float switch has a 1m cable for a flexible electrical connection.
