ILS-G0250-005, Sensata / Cynergy3 Cynergy3 ILS Series Pressure Level Transmitter, 4-20mA Output, Cable, Stainless Steel Body

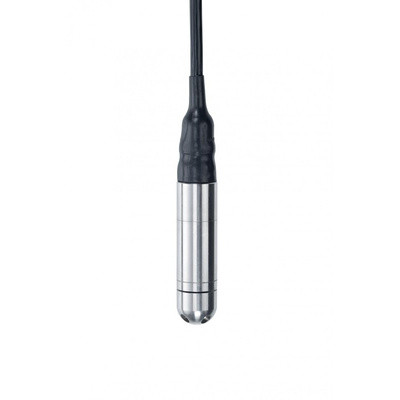

ILS Submersible Level Transmitter

Submersible level sensors are a simple way of measuring the level of liquids such as water, oils and non-aggressive chemicals. Typical applications include monitoring river levels, reservoirs, tank level, borehole levels and environmental monitoring. Submersible hydrostatic level sensors provide stable, reliable and repeatable measurements in situations when other level sensing technologies are impractical or not accurate enough. These sensors use piezo-resistive technology and a microprocessor based amplifier removing the need for adjustments and maintaining accurate and dependable readings. Supplied with traceable serial number and calibration certificate.

Accuracy <0.1% FS
1mWG to 100mWG pressure range
Stainless Steel Casing
Reverse polarity protection

Sensata Cynergy3 Pressure Level Transmitter, 5m Cable, 4 to 20mA Output - ILS Series - ILS-G0250-005

Use this pressure level transmitter from Sensata Cynergy3 to monitor the level of an array of liquids. The device is highly resistant to corrosion and wear thanks to its robust stainless steel housing. This component is fully calibrated and temperature-compensated for improved accuracy of readings. This also helps to save you time and effort during installation. Common applications include monitoring river levels, reservoirs, tanks and boreholes.

Features & Benefits

• Supply voltage range of 9 to 32V DC for use in low-voltage applications
• Viton gasket material is resistant to chemicals and wear to ensure a durable, leakproof seal
• Wide operating pressure range of 1 to 100mWG (metres of water gauge) for use in low and high-pressure applications
• Compatible with media ranging in temperature from -20°C to +60°C for use in demanding applications
• Ample cable length of 5m for a flexible electrical connection

How accurate is this level transmitter?

This level transmitter has an accuracy of

ILS Series Datasheet
