ILS-G0500-007, Sensata / Cynergy3 Cynergy3 ILS Series Pressure Level Transmitter, 4-20mA Output, Cable, Stainless Steel Body

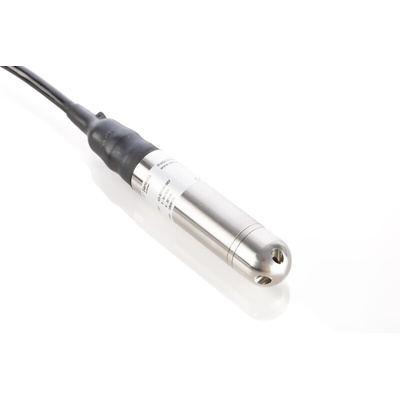

ILS Submersible Level Transmitter

Submersible level sensors are a simple way of measuring the level of liquids such as water, oils and non-aggressive chemicals. Typical applications include monitoring river levels, reservoirs, tank level, borehole levels and environmental monitoring. Submersible hydrostatic level sensors provide stable, reliable and repeatable measurements in situations when other level sensing technologies are impractical or not accurate enough. These sensors use piezo-resistive technology and a microprocessor based amplifier removing the need for adjustments and maintaining accurate and dependable readings. Supplied with traceable serial number and calibration certificate.

Accuracy <0.1% FS
1mWG to 100mWG pressure range
Stainless Steel Casing
Reverse polarity protection

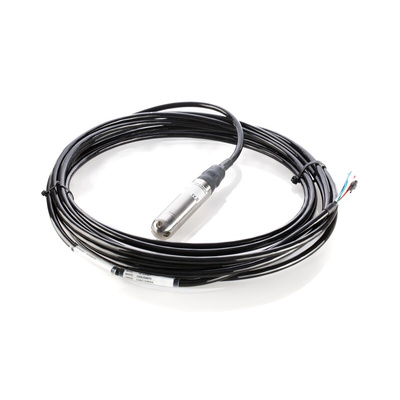

Sensata Cynergy3 Pressure Level Transmitter, 7m Cable, 50 Bar - ILS Series - ILS-G0500-007

This pressure level transmitter from the Sensata Cynergy3 range provides you with continuous measurement of your system's liquid levels. It has a piezoresistive sensor that uses changes in electrical resistance to measure pressure levels and produce precise readings. The readings are transmitted along the cable that suspends the transmitter in the liquid and are transferred to your control display unit for greater ease of use. You can use this transmitter in low-density liquid applications such as water wells, reservoirs and rivers.

Features & Benefits

• Stainless steel body material is resistant to corrosion for long-lasting use in harsh environments
• Accuracy level of

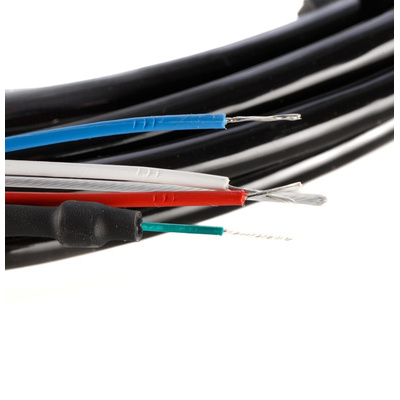

How long is the cable provided with this transmitter?

This transmitter's cable measures 7m long to provide you with an extended reach into your liquid container.

Can this level transmitter withstand harsh temperatures?

Yes, this level transmitter has a broad operating temperature range of -20°C to +60°C for use with hot or cold liquids.

ILS Series Datasheet

Brochure - Level Sensors & Float Switches

Selection Guide - Level Sensors & Switches
