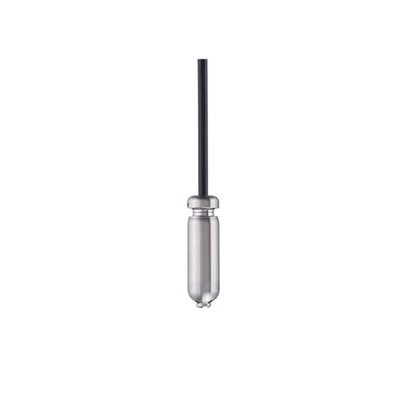

ILLS-G0100-5-003, Cynergy3 ILLS Series, Pressure Cable Mounting Level Transmitter 4-20mA Output

Cynergy3 Level Transmitter

The Cynergy3 level transmitter is designed for continuous submersion in liquids such as water, oils and fuels in small tanks, where conventional mechanical level switches and sensors are not ideal and more level ’control’ and measurement is required. The probe uses a piezo-resistive silicon sensing technology, isolated from the media by a diaphragm within the stainless steel housing. It offers excellent stability, repeatability and resolution for applications where a small tank level is required, from as low as 1m through to 10m high tanks. Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate. Its supply voltage ranges between 9VDC and 32VDC.

Features and Benefits

Piezo-resistive sensor
Accuracy is less than 0.5% FSBFSL
Pressure ranges from 0mWG to 1mWG
Cable length is 3M
The transmitter has an output between 4mA and 20mA
303 stainless steel

Applications

Static tank level
Container or chamber level
Vehicle tank level
IBC, IBC tote or pallet tank
Rainwater harvesting

Certifications

CE certified
