ILLS-G0500-5-007, Cynergy3 ILLS Series, Pressure Cable Mounting Level Transmitter 4-20mA Output

Cynergy3 Level Transmitter

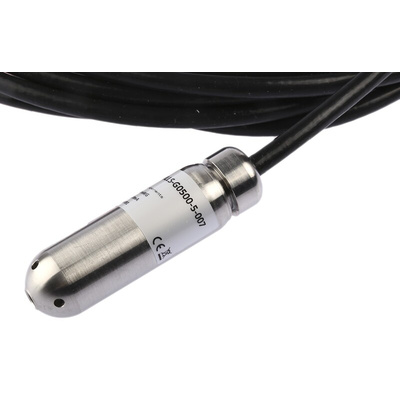

The Cynergy3 level transmitter is designed for use in continuous submersion in liquids such as water, oil and fuel in small tanks, where conventional mechanical level switches and sensors are not ideal and more level ’control’ and measurement is required. The probe uses a piezo-resistive silicon sensing technology, isolated from the media by a diaphragm within the stainless steel housing. It offers excellent stability, repeatability and resolution for applications where a small tank level is required, from as low as 1m to 10m high tanks. Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate. Its supply voltage ranges between 9VDC and 32VDC.

Features and Benefits

Piezo-resistive sensor
Accuracy is less than 0.5% FSBFSL

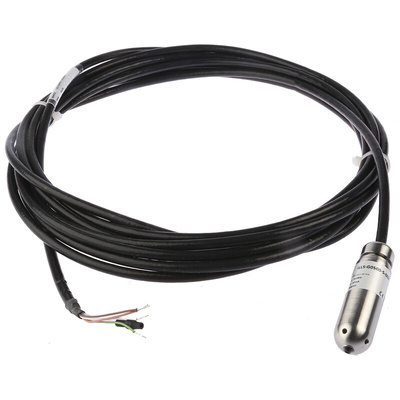

Cable length is 7m
The transmitter has output ranging between 4mA and 20mA
303 Stainless Steel housing and diaphragm
Pressure ranges between 0mWG and 5mWG (0-197inWG)

Applications

Static tank level
Container or chamber level
Vehicle tank level
IBC, IBC tote or pallet tank
Rainwater harvesting

Certifications

CE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
