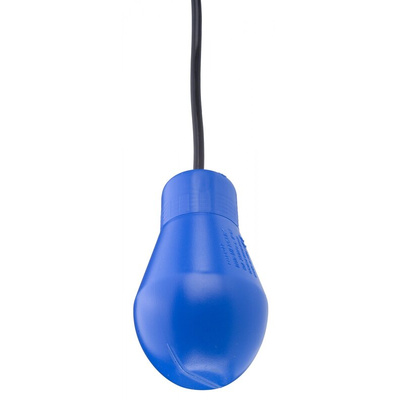

LM10BW, Sensata / Cynergy3 LM Series Cable Mount Polypropylene Float Switch, 5m Cable, NC, 250V ac Max, 110V dc Max

Compact Float Switch - WRAS Approved

WRAS approved float switches for use in water, industrial wastewater and sewage. The compact design makes them ideal for tighter spaces and they are unaffected by suspended solids or turbulent fluids. A round body design prevents solids building up on the boy and the switching unit is self cleaning that is impervious to humidity and condesation.

Supplied with5m cable
10 Amp resistive switch contacts
Available as N/O, N/C or C/O
WRAS approved
Adjustable counterweight

Note

It is necessary to use an auxiliary relay, when switching pump motors or any loads that are not
purely resistive.

Sensata Cynergy3 Float Switch, NC Switch Output, 5m Cable Length - LM Series - LM10BW

Looking for a way to regulate the levels of fluids in your tank? Choose this float switch from Sensata Cynergy3. Thanks to its compact dimensions of 129 (length) x 75mm (diameter), the device fits easily into small tanks. It has a rounded design to help prevent contaminants from accumulating on its body, making it a good choice for use in hygienic environments. You'll find this float switch used in applications such as wastewater management.

Features & Benefits

• Self-cleaning electrical contacts prevent the build-up of contaminants for reliable switching
• HDPE body material for resistance to wear and chemicals
• Cable length of 5m for a flexible electrical connection
• Maximum switching voltage of 250V AC and 110V DC for use in low-power applications

Do I need to earth this float switch's connection?

No, the switch's cable has a built-in protective earth wire for enhanced electrical safety.

Can I use this float switch in extreme temperatures?

Yes, this float switch has a wide operating temperature range of 0°C to +55°C for use in demanding environments.

LM WRAS Series Float Switch Datasheet

Selection Guide - Level Sensors & Switches

Installation Sheet - Float Switches
