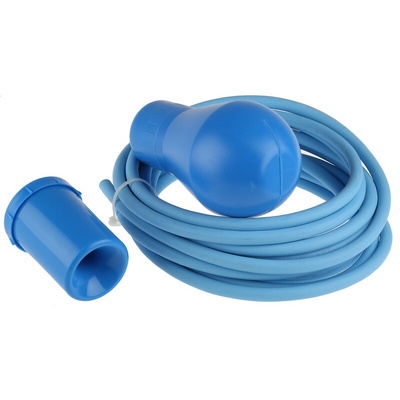

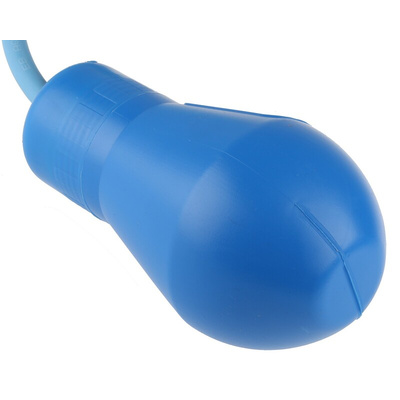

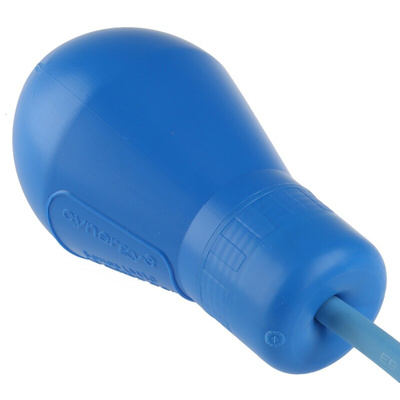

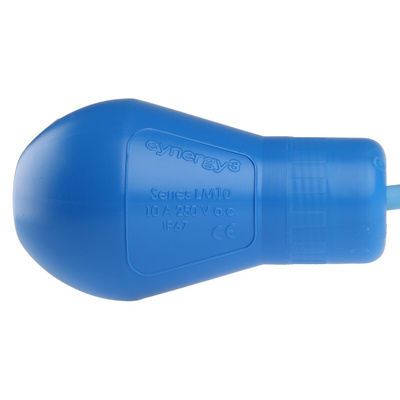

LM10AW, Sensata / Cynergy3 LM Series Cable Mount Polypropylene Float Switch, 5m Cable, NO, 250V ac Max, 110V dc Max

Compact Float Switch - WRAS Approved

WRAS approved float switches for use in water, industrial wastewater and sewage. The compact design makes them ideal for tighter spaces and they are unaffected by suspended solids or turbulent fluids. A round body design prevents solids building up on the boy and the switching unit is self cleaning that is impervious to humidity and condesation.

Supplied with5m cable
10 Amp resistive switch contacts
Available as N/O, N/C or C/O
WRAS approved
Adjustable counterweight

Note

It is necessary to use an auxiliary relay, when switching pump motors or any loads that are not
purely resistive.

Sensata Cynergy3 Float Switch, NO Switch Output, 5m Cable Length - LM Series - LM10AW

This float switch from Sensata Cynergy3 gives you precise control over your system's fluid levels. It has a maximum working pressure of 10 bar for use in heavy-duty applications. The device's curved shape prevents solids from sticking to the outside of the float, so it's suitable for use in thick fluids like sewage. As the switch comes with self-cleaning contacts, it's protected against dust and corrosion build-up to ensure reliable switching. Its cable includes a protective earth wire for added safety in the event of a power surge.

Features & Benefits

• Maximum switching voltage of 250V AC and 110V DC for use in low-power systems
• Long cable length of 5m for a flexible connection
• HDPE body is resistant to wear and chemicals for use in demanding applications
• Wide operating temperature range of 0°C to +55°C for use in harsh environments

How large is this float switch?

This float switch has compact dimensions of 129 (length) x 75mm (diameter), making it a good choice for installation in tanks with limited space.
