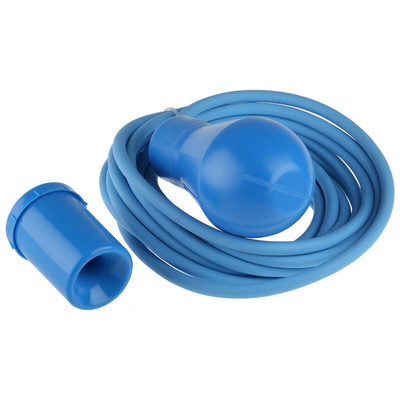

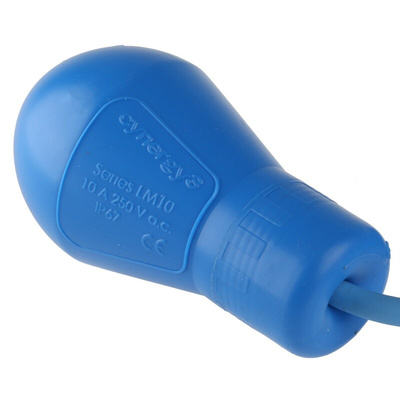

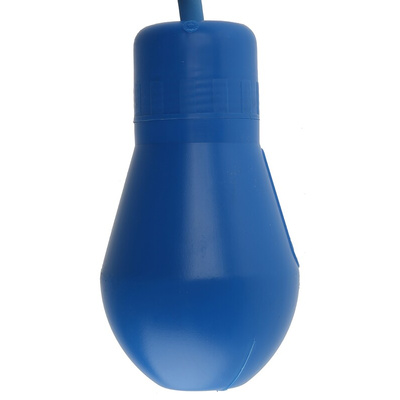

LM10CW, Sensata / Cynergy3 Cynergy3 LM Series Cable Mount Polypropylene Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 110V dc Max

Compact Float Switch - WRAS Approved

WRAS approved float switches for use in water, industrial wastewater and sewage. The compact design makes them ideal for tighter spaces and they are unaffected by suspended solids or turbulent fluids. A round body design prevents solids building up on the boy and the switching unit is self cleaning that is impervious to humidity and condesation.

Supplied with5m cable
10 Amp resistive switch contacts
Available as N/O, N/C or C/O
WRAS approved
Adjustable counterweight

Note

It is necessary to use an auxiliary relay, when switching pump motors or any loads that are not
purely resistive.

Sensata Cynergy3 Cable Mount Float Switch, 250V AC, 110V DC - LM Series - LM10CW

This float switch from Sensata Cynergy3 keeps you informed of your tank's liquid levels. The floating component lowers into the tank via the attached cable and remains submerged within the liquid while in use. The device registers the liquid level and converts it into an electrical signal that travels up the wire to the switch. This type of switch is commonly used with industrial wastewater and sewage tanks and is an essential device for preventing hazardous overflow. The rounded body prevents solids from attaching to the surface and disrupting readings for improved accuracy.

Features & Benefits

• Durable polypropylene (PP) body material resists wear in turbulent water conditions
• Sealed to withstand humidity and condensation caused by changes in water temperature
• Ample 5m cable length provides an extended reach into large industrial containers
• Wide operating temperature range of 0°C to +55°C makes it suitable for use in a variety of environments

What type of switch configuration does this float switch have?

This float switch has a SPDT (single pole double throw) switch configuration. This means it has one input that connects and switches between two outputs.
