DD11.0114.1111, Schurter C14 Panel Mount IEC Connector Male, 10A, 250 V, Fuse Size 5 x 20mm, Разъем

DD11 Series Power Entry Module (without filter)

The DD11 series power entry modules have been designed for panel mount applications. They are screw on and can be mounted and secured from the front or rear side. They have been designed to serve 3 functions. Firstly they offer appliance inlet protection class I. Second is a 2-pole line switch and lastly they have a built in fuse folder for 5x20mm fuses.
They come with a V-lock notch as standard and are equipped with 4.8 x 0.8mm quick connect terminals. These units are non-filtered.

Features:
Ultra-compact design. Ideal for low profile designs
All single elements are already wired
Fuse drawer meets requirements of medical standard IEC/EN 60601-1
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950

Note

Fuse Holders must be ordered separately

Standards

VDE Certificate Number: 40018283
UL File Number: E93617

Schurter IEC Connector

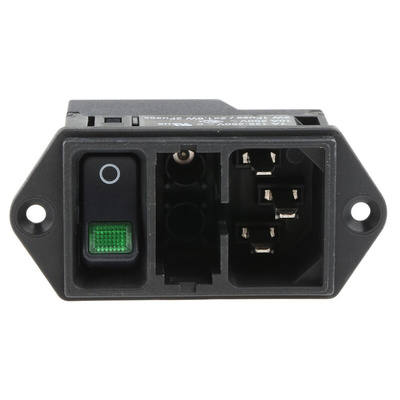

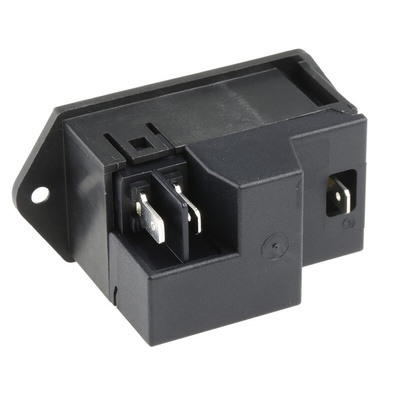

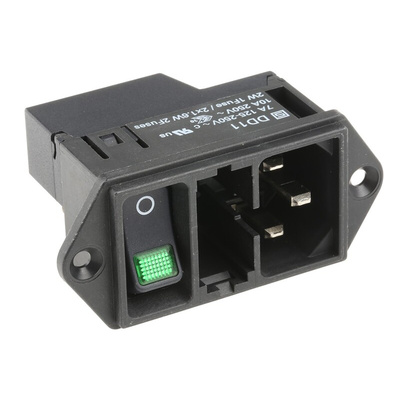

The Schurter IEC fused inlet is a straight male C14 connector and screw mount plug device. It has switched inlets with a single-pole fuse holder and double-pole green illuminated switch. It has a power supply voltage rating of 250VAC and current rating of 10A.

Note: Fuse holders must be ordered separately. See the data sheet for compatible references.

Features and Benefits

Ultra-compact design
Ideal for low profile designs
Non-filtered
All the single elements are already wired
V-Lock notch
Screw-on version from front or rear side
Quick connect terminals of 4.8mm x 0.8mm

Certifications

VDE
UL

Datasheet
