Schurter 15A, 250 V ac Male Screw Filtered IEC Connector 2 Pole DF12.0031.9110.1, Quick Connect None Fuse, Фильтр

Schurter Inlet IEC Filter

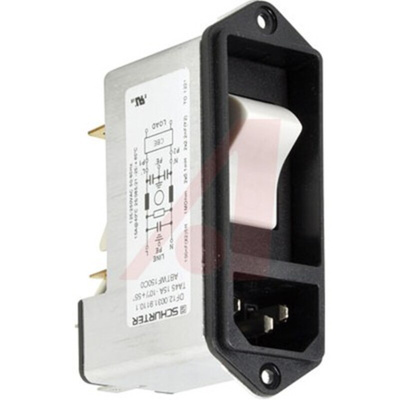

The Schurter DF12 series inlet filter is a male type, screw mount power entry module. It has a voltage rating is 250VAC with a high-performance current rating of 15A. The key functions are an IEC C14 appliance inlet, a type TA45 circuit breaker and a 2-pole switch. The circuit breaker has a manual reset feature with 2-pole thermal overload protection or no bi-metal for 2-pole ON/OFF switching only. This series is suitable for high inrush currents and high transient loads, providing a practical solution over fused modules with inherent power dissipation limitations.

Schurter range:
Panel mount, IEC inlet plugs with integral mains filter and ultra-compact design. Fuse holders accept 5mm x 20mm fuses.

Features and Benefits

Compact size
Quick connect terminals of 6.3mm x 0.8mm
All the single elements are already wired
Line switch non-illuminated
Ideal for applications with high transient loads
Operating temperature ranges between -25°C and 85°C

Applications

Electrical and electronic equipment,
Household equipment
Single-phase and switch-mode power supplies

Certifications

VDE approved
UL approved
IEC 60601-1

Datasheet
