Microchip, dsPIC33EV 5V CAN-LIN STARTER KIT Development Kit, dsPIC33EV256GM106 - DM330018

Microchip Can-Lin Starter Kit

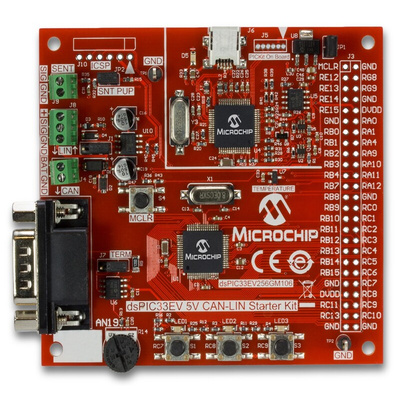

The Microchip CAN-LIN starter kit is a development platform featuring the digital signal controller (DSC), a device designed for automotive and motor control applications. The board allows users to explore CAN, LIN and SENT serial data formats using the on-board data ports for each protocol. A PICkit on-board (PKOB), USB programmer and debugger is provided along with it enabling simple programming without the need for an additional hardware interface.

Features and Benefits

1 CAN module with 32 buffers and 16 receive filters
2 SENT (single edge nibble transmission) modules
2 UARTs with LIN/J2606 support
SPI and I2C serial interfaces
1 high-speed (1.1MSPS), 10/12-bit A/D converter with multiple input channels
1 charge time measurement unit (CTMU)
6 pulse-width modulation (PWM) outputs
Analog temperature sensor (MCP9701A)
USB chargeable
Ratiometric trim potentiometer
CAN interface (MCP2561) with DB9 male connector
LIN Interface (MCP2021A) with required interface electronics
Three general purpose momentary push buttons
Three general purpose LEDs
Breakout connector footprint

Applications

Embedded development
Educational institutions
Robotics
Electronics laboratories
Automation

Certifications

CE certified
FCC certified

DM330018 User Guide

DM330018 - UserGuide
