THD 10-2411N, TRACOPOWER THD 10N DC-DC Converter, 5V dc/ 2A Output, 18 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp, Преобразователь

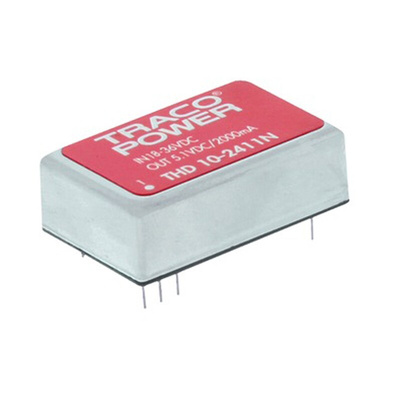

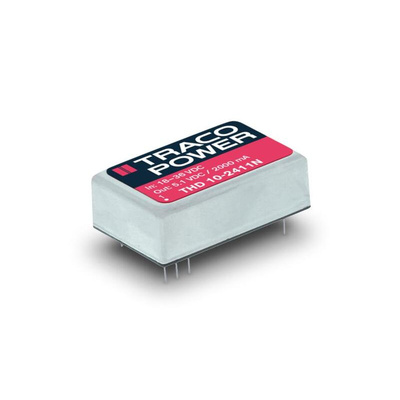

Traco Power DC-DC Converter, Isolated, 31.8mm Length - THD 10N Series - THD 10-2411N

Step down your voltage and step up your efficiency with this DC-DC converter from Traco Power. It converts an input voltage between 18 and 36V DC to a lower 5V DC output. With an efficiency rating of 85%, the unit stays as cool as a cucumber by wasting little energy as heat. An EMI filter reduces electrical interference for smooth-as-silk performance. The unit tips the scales at just 17.3g, so ensures strain on your equipment is kept to a minimum.

• Overvoltage protection boosts electrical safety
• Metal housing with non-conductive baseplate protects against impact and wear
• Compact dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D) provides a space-saving solution for busy setups
• Through-holes ensure secure installation without the need for special tools
• Remote on/off feature for convenient operation
• Automatic recovery after a short circuit to minimise downtime

Applications

• Power supplies
• Automotive industry
• Domestic appliances

Is this converter safe to use in challenging industrial conditions?

Yes, it has a broad operating temperature range between -40°C and +85°C to handle tough environments.
