THD 10-4823N, TRACOPOWER THD 10N DC-DC Converter, ±15V dc/ ±333mA Output, 36 → 75 V dc Input, 10W, Through Hole, +85°C Max, Преобразователь

Traco 10W Regulated Isolated DC-DC Converter - THD10-N Series

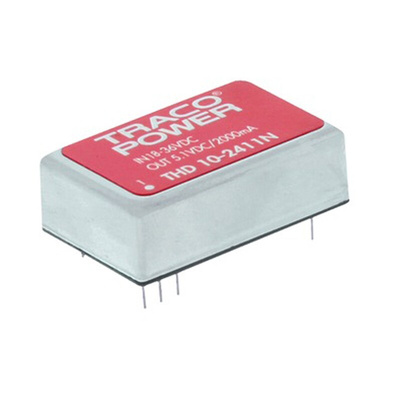

The Traco Power THD 10N series is a range of isolated high performance 10W DC-DC converters, in a low profile DIL-24 package, with standard industry pin-out. These DC-DC converters also feature built-in overvoltage protection and internal EMI-filter to meet EN 55022, class A. The THD 10N DC-DC converters have a full SMD-design with exclusive use of ceramic capacitors, which guarantees high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB.

Wide 2:1 input Voltage range
High efficiency up to 87%
Operating temperature range –40°C to +85°C
Internal EMI-filter meets EN 55022, class A
I/O isolation 1500VDC
Remote On/Off
No minimum load required

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
