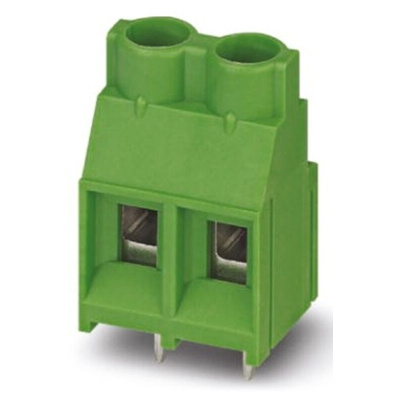

1868076, Phoenix Contact MKDS 5/ 2-7.62 Series PCB Terminal Block, 2-Contact, 7.62mm Pitch

Phoenix Contact 7.62mm COMBICON MKDS 5 Series PCB Terminal Blocks

7.62mm pitch COMBICON MKDS 5 Series vertical through hole mount PCB terminal blocks with a 6mm² rising cage clamp screw connection. These 7.62mm COMBICON MKDS 5 Series PCB terminal blocks are available with 2 and 3 position bases for versatile configurations.
For screw driver see 390-9641

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², Number of potentials: 2, Number of rows: 1, Number of positions per row: 2, product range: MKDS 5, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5.1 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Phoenix Contact COMBICON 7.62mm Pitch PCB Terminal Blocks

Datasheet
