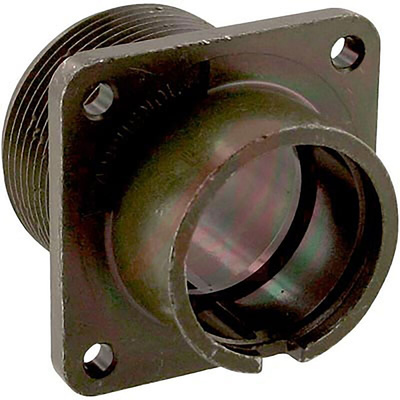

97-3102A-18(0850), Amphenol Industrial Female Connector Shell size 18 for use with Cylindrical Connector, Вкладыш

8723647
Номер производителя: 97-3102A-18(0850)Производитель: Amphenol Industrial
Цена за шт.
4106.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Amphenol 97 Series Receptacle Connector Shell MS3102A

Amphenol 97 series connector shells are fabricated from high grade aluminium alloy to provide strength and environmental protection. Connector components have a conductive cadmium plate finish and an olive drab chromate after-treatment.

Amphenol - 97 Series

Amphenol's 97 Connector series provide the interconnection solution for low cost, general duty applications. The connectors are widely used in a range of applications such as factory automation, robotics, machine tooling, welding equipment and medical equipment. Shell components are fabricated from high grade aluminium alloy to provide strength andl protection. The series offers a wide range of shell styles. contact patterns and accessory options.

Low cost, general duty applications
Solder or crimp termination
Available in a range of shell styles and insert patterns
Shell components are fabricated from high grade aluminium alloy
Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
Available accessories for both individual wire seal and jacketed cable
Thread coupling
Hard dielectric inserts

Approvals

UL recognized and CSA recognized

Техническая спецификация
pdfAmphenol 97 Series Standard Cylindrical Connector
pdfAmphenol 97 Series MIL-DTL-5051 Datasheet
Для использования с:
Cylindrical Connector
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C
Размер корпуса:
18
Род:
Female
