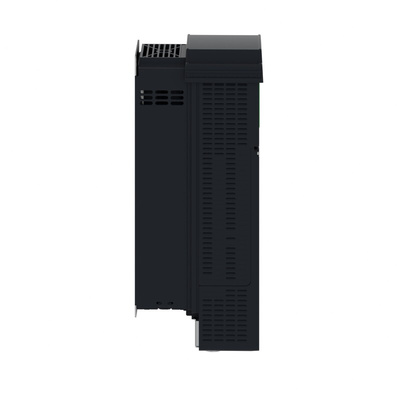

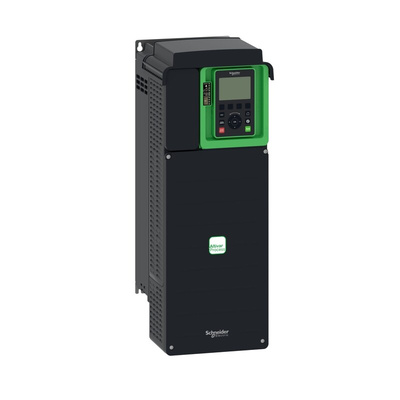

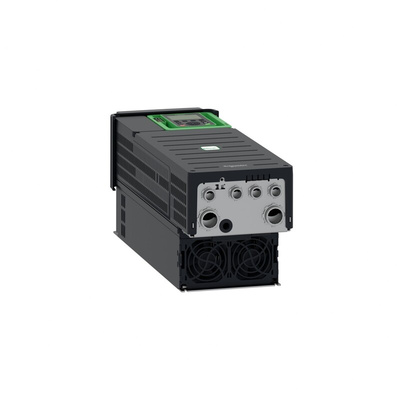

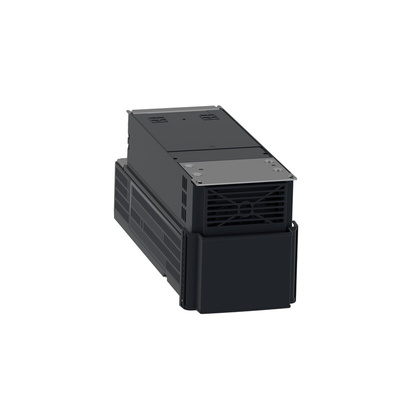

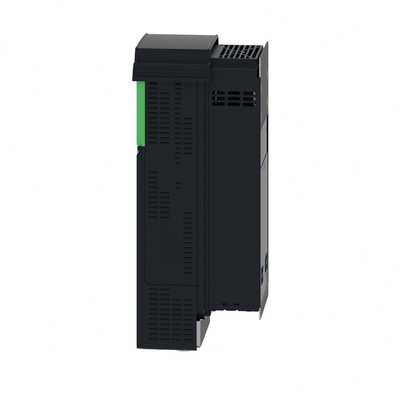

ATV630D22N4, Schneider Electric Inverter Drive, 22 kW, 3 Phase, 380 → 480 V ac, 39.2 A, 46.3 A, ATV 630 Series

Altivar ATV630 VFD Series

The Altivar Process Variable Speed Drive offers your business optimisation, real-time intelligence and provides the efficiency that you deserve. The Altivar Process Drive gives you extensive flexibility in water, wastewater, mining, minerals, metals as well as oil, gas, food and beverages. This series of Variable Frequency Drives is the perfect solution to help you improve your machines effectiveness across a variety of applications. Altivar ATV630 VFD (Variable Frequency drive) Series has an IP21 rating and can been wall mounted. It has a three phase synchronous and asynchronous motor which makes it the optimum choice across many businesses.

Features and Benefits

• Depending on the customer’s requirements, wall-mounting drives, built-in cabinet and floor-standing solutions are available with IP 21, IP 23, IP 54 and IP 55 protection degrees.
• Optimum monitoring of your process is given through the instant reaction, if the pump efficiency drops, this is all thanks to the embedded pump monitoring.
• Notification of critical operation points without having to have additional sensors.
• Featuring a process integration with pressure, flow and level control including compensation of flow losses.
• The stop innovative “Stop & Go” function saves you up to 60% of your energy when on standby mode.
• There is also a data logging and graphic display of the power consumption.
• The Altivar ATV630 by Schneider has an embedded web server interface which is based on the Ethernet network, giving you process monitoring with your daily work tools.
• Local and remote access to energy use and customized dashboards means your energy is visible anywhere, any time, on PC, tablet or smartphone.
• This series is super user-friendly, offering you easy integration due to the standardized FDT/DTM and ODVA technology as well as being supported by predefined Unity Pro libraries.
• It is easily accessible via a PC, tablet or smartphone and has a secure connection via “Cyber-secure Ethernet”.
• Featuring a sophisticated service concept with its modular design which provides easy spare parts logistics.
• Optimized maintenance costs due to dynamic maintenance schedule, with integrated monitoring of individual components.
• Super simple exchange of power modules and fans.
• Quick assistance with dynamic QR codes and Customer Care App.

What is the “Stop & Go” function on the Altivar Process Drive?

This special feature gives a huge reduction on the energy that is consumed with the motor is on standby mode and the power supply of the drive is switched on. This function can save you up to 60% on energy use. When the “Stop & Go” function is in action the machine will switch off the power section (rectifier, DC-Bus), the fans and backlight of the graphic keyboard. This energy saving mode is automatically switched on when the machine is not in use or running, this is known through the communication network and can be adjustable through the parameter.

What else is supplied with this Inverter Drive?

This Inverter Drive is also supplied with a Graphic Display Terminal which can be connected and mounted on the front of your inverter. You could also connect and mount on an enclosure door using remote mounting accessories. The display terminal can be connected to a PC to exchange files via a Mini USB|USB connection as well as giving you connection to several drives in the multidrop mode. Please refer to the datasheet for more information regarding the feature.

Standards

The Green Premium product label, Schneider Electric’s eco-mark, indicates your compliance with international environmental standards such as RoHS-2 according to EU directive e 2002/95, REACH according to EU regulation 1907/2006 and IEC 62635: the end-of-life instructions comply with the latest recycling rules, 70% of the product components can be recycled.

Schneider Electric ATV 630 Series Inverter Drive, 3-Phase, 22kW - ATV630D22N4

This Schneider Electric inverter drive with a power rating of 22 kW is a versatile and efficient solution for automation, electronics, electrical, and mechanical applications. With its variable frequency capability and Profibus Field bus communication, this drive offers precise control and seamless integration. The IP21 panel mount design ensures easy installation and reliable performance. Additionally, with features like energy management and dynamic predictive maintenance, this drive optimises operations and enhances system reliability.

Features & Benefits

• Variable Frequency Drive for precise speed control
• Profibus Field Bus Communication enables seamless integration into control systems
• 22 kW Power rating ensures high performance operation
• IP21 rating for reliable protection in various environments
• Energy Management feature for efficient power usage
• Panel Mount design for easy installation and space saving
• Dynamic Predictive Maintenance for proactive system upkeep

Applications

• Ideal for controlling asynchronous and synchronous motors in automation applications
• Perfect for use in the electronics industry for motor control and energy savings
• Suitable for electrical applications requiring precise speed control and energy management

Can it be easily integrated into existing automation systems?

Yes, the Schneider Electric inverter drive is designed for seamless integration with PROFIBUS field bus communication, ensuring compatibility with most automation setups.

Will it help in reducing energy consumption?

Yes, the energy management feature of this drive optimises power usage, leading to significant energy savings in various applications.

Is it suitable for panel mounting installations?

Yes, the IP21 rating and panel mount design make it perfect for easy installation and space-saving solutions in control panels.

Can it provide real-time maintenance alerts for predictive maintenance?

Yes, the Dynamic Predictive Maintenance feature offers real-time monitoring and alerts for proactive maintenance, ensuring system reliability and uptime.

Is it compatible with different types of asynchronous and synchronous motors?

Yes, the Schneider Electric inverter drive is versatile and can work with a wide range of motor types, providing flexibility in application scenarios.
