6210-BLE-A03, Herga Light Duty Momentary On-Off Wireless Foot Switch - Thermoplastic Case Material, 100 mA Contact Current, Ножной выключатель

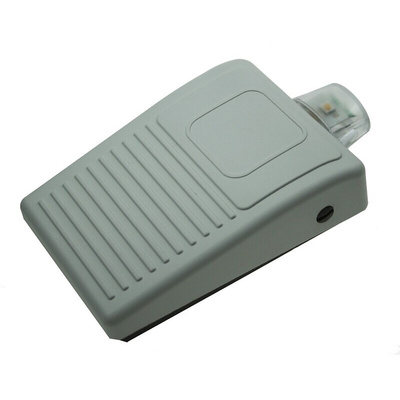

Herga 6210 Wireless Foot Switch

Herga 6210 wireless foot switch has a Thermoplastic body and is also battery operated with LED indication. The footswitch also includes a timeout for battery conservation. It is a singal pedal and runs on commercially available Alkaline cells. The foot switch has a 10 metre range and is IEC 60602-1-2 compliant

Secure wireless closed network with up to 2 transmitters
Uktra low power with 1uA sleep current
10 metre range - typically <100mS latency
Simple push button pairing procedure with LED indication
LED indication of battery status
Chois of 15 or 60 minutes timeout for battery conservation
Auto wake from sleep/re-connect on the press of the pedal
Extrenally accessable battery compartment
Runs on commecrcially available Alkaline cells - 2 AAA
Operating temperature of 0°C to 40°C

Approvals

Radio Type - Europe (ETSI R&TTE) US (FCC/CFR 47 part 15 unlicensed modular transmitter approval) Canada (IC RSS)

R&TTE directive 1999/5/EC:
Effective use of frequency spectrum: EN300 328 EMC: EN301 489-1, EN 301 489-17, EN 61000-6-2 Health & safety: EN 50371, EN 60950-1 and/or IEC 60950-1

Medical Electrical Equipment:
IEC 60601-1-2 Compliant (Customer’s risk assessment required)

Datasheet
