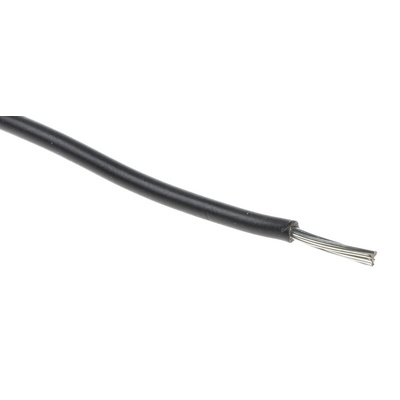

RS PRO Black 0.33 mm² Hook Up Wire, 22 AWG, 7/0.12 mm, 100m, MPPE Insulation

RS PRO Black, 0.33 mm² Hook Up Wire, 100 m

Need to wire something up? This hook-up wire from RS PRO is ideal for use in the internal wiring of equipment. It's suitable for use in a range of environments, even high-temperature settings, as it can withstand temperatures of up to +105°C.
The wire's tinned copper conductors offer excellent conductivity to ensure a reliable transmission of signal. They are also resistant to corrosion, meaning your wire will last for longer. The wire is insulated with modified polyphenylene ether (MPPE). Thanks to MPPE's excellent dielectric properties, the wire's wall thickness can be kept down to just 0.2 mm.
The cable meets the Underwriters Laboratories UL 1581 and UL 758 standards as a safe and effective electrical cable. It has also passed the VW-1 flammability test, meaning it's designated as a fire-resistant cable suitable for general use.

Features and Benefits

• Wire size of 22 American Wire Gauge (AWG)
• Cross sectional area of 0.33 mm²
• Length of 100 m
• Seven core strands of 0.12 mm
• Modified polyphenylene ether (MPPE) insulation material
• Insulation wall thickness of 0.2 mm
• Tinned-copper conductor material
• Outer diameter of 1.3 mm
• Black sheath colour
• Maximum operating temperature of +105°C
• Minimum operating temperature of 0°C
• Voltage rating of 600 V
• UL11028 wire style
• Underwriters' Laboratory UL 1581, UL 758 standards met
