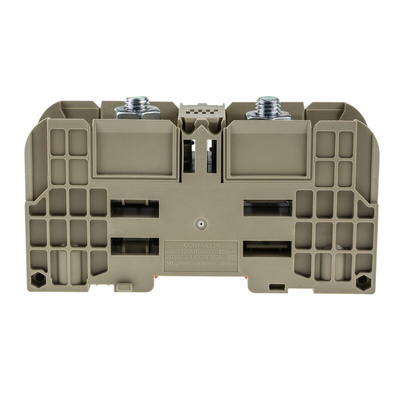

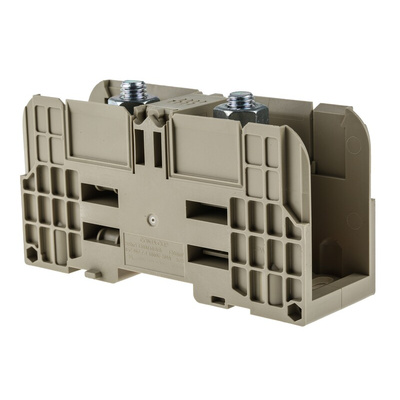

RS PRO Beige Stud Terminal, Double-Level, Bolt Termination

RS PRO Beige Stud Terminal, 10 AWG → 250 kcmil, 1 kV

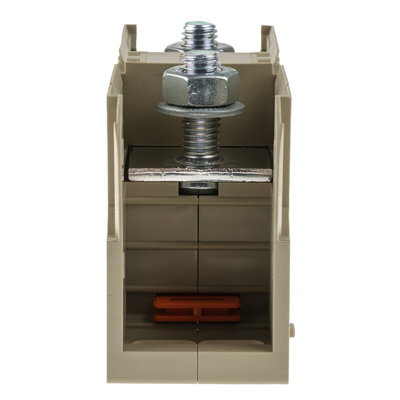

Looking to connect high-power cables securely in a compact housing? This stud terminal from RS PRO can be used with M6, M8, M10, M12 and M16 threaded studs, depending on the wire cross-section. You can apply wires with crimped cable lugs to threaded bolts and connect them securely to the bus bar by tightening the hex nut.
The housing is made from durable polyamide (PA), meeting the Underwriters Laboratories (UL) 94-V0 flammability standard. This means it has self-extinguishing properties to prevent the spread of fire, while its low voltage drop reduces the risk of damage to equipment. The terminal's foot is designed to be snapped onto a TS 35 DIN rail.
The terminal can be used at temperatures from -40°C to +120°C, so it's suitable for a wide range of environments. Terminal blocks like this are commonly found in vehicle control panels, behind vehicle dashboards and in heavy machinery.

Features and Benefits

• Beige colour
• Current rating of 269 A (IEC), 310 A (CSA), 310 A (UL)
• Maximum operating temperature of +120°C
• Minimum operating temperature of -40°C
• Double level
• Bolt termination method
• Voltage rating of 1 kV
• Wire size of 10 American Wire Gauge (AWG) to 250 Kilo per circular mil (KCMil)
