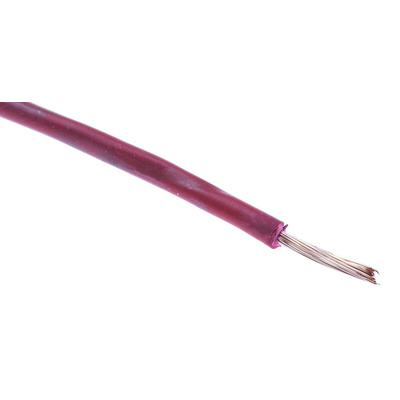

RS PRO Red 0.33 mm² Hook Up Wire, 22 AWG, 17/0.16 mm, 100m, XLPE Insulation

RS PRO Red, 0.33 mm² Hook Up Wire, 100 m

Use this RS PRO hook-up wire for the internal wiring of equipment. The wire's conductors are made from tinned copper, which offers excellent conductivity to ensure a reliable transmission of electrical signal. This material is also resistant to corrosion, meaning your wire will have a longer service life.


The wire is insulated with cross-linked polythene (XPLE), which offers excellent thermal insulation. This means that the cable can withstand temperatures of up to +125°C, so it's safe to use it in demanding industrial settings. As it has passed the VW-1 flammability test, it's also designated as a fire-resistant, general-use cable.


This product meets the Underwriters' Laboratories UL 1581 and UL 758 standards for safety and efficacy. It also complies with Restriction of Hazardous Substances (RoHS) standards, meaning it contains only trace levels of any harmful materials.

Features and Benefits

• Hookup wire type


• Wire size of 22 American Wire Gauge (AWG)


• Cross-sectional area of 0.33 mm²


• Insulation wall thickness of 0.4 mm


• Length of 100 m


• 17 core strands of 0.16 mm


• Outer diameter of 1.58 mm


• Red sheath colour


• Maximum operating temperature of +125°C


• Minimum operating temperature of 0°C


• Cross-linked polythene (XPLE) insulation material


• Tinned copper conductor material


• Voltage rating of 300 V


• UL3266 wire style


• Restriction of Hazardous Substances (RoHS) compliant


• Underwriters' Laboratories UL 1581 and UL 758 compliant
