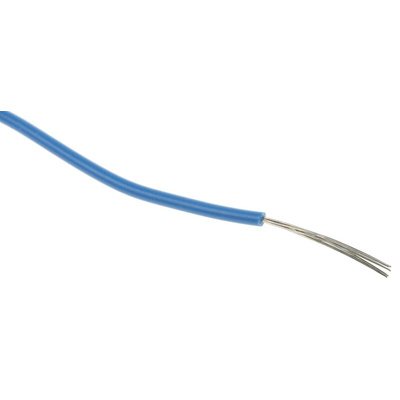

RS PRO Blue 0.33 mm² Hook Up Wire, 22 AWG, 17/0.16 mm, 100m, XLPE Insulation

RS PRO Blue, 0.33 mm² Hook Up Wire, 100 m

Need internal wiring for an electronic device? Turn to this hook-up wire from RS PRO. The wire's conductors are made of tinned copper, so they offer excellent conductivity to give you reliable electrical transmission. Tinned copper also resists corrosion, meaning your wire will last for longer.


The wire comes fitted with cross-linked polythene (XPLE) insulation, which is known for its great thermal insulation properties. This means that the cable is safe for use at high temperatures of up to +125°C. It also has a VW-1 flammability certification, so it's designated as a fire-resistant, general-use cable.


This product meets the Underwriters' Laboratories UL 1581 and UL 758 standards for safety and efficacy. It's also Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Hookup wire type


• Wire size of 22 American Wire Gauge (AWG)


• Cross-sectional area of 0.33 mm²


• Insulation wall thickness of 0.4 mm


• Length of 100 m


• 17 core strands of 0.16 mm


• Outer diameter of 1.58 mm


• Blue sheath colour


• Maximum operating temperature of +125°C


• Minimum operating temperature of 0°C


• Cross-linked polythene (XPLE) insulation material


• Tinned copper conductor material


• Voltage rating of 300 V


• UL3266 wire style


• Restriction of Hazardous Substances (RoHS) compliant


• Underwriters' Laboratories UL 1581 and UL 758 compliant
