RS PRO Beige Feed Through Terminal Block, Single-Level, Screw Termination

RK Series Feed-Through Terminals

These feed-through terminals utilise the Conta-Clip RK screw connection system capable of very high contact forces in a small space while ensuring a high level of contact safety.

Screw connection system, 2 connections
Foot can be snapped on TS 32 and TS 35 DIN rails
Housing made from polyamide 6.6 UL 94-V2

Approvals

UL 94-V2

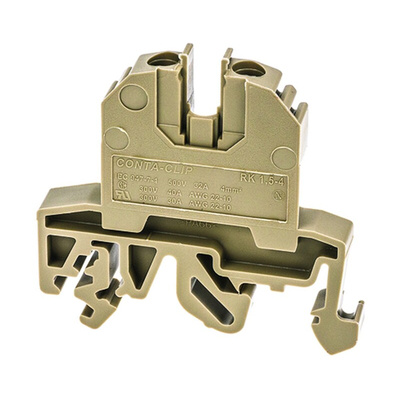

RS PRO Beige Feed-Through Terminal Block, 22 to 10 AWG, 500 V

If you need a compact and secure way to keep your electrical connections organised, choose this feed-through terminal block from RS PRO. It can generate high contact forces in a small size, so it's ideal for tight set-ups where space is limited.


Installing the block easy. Simply feed your wire into either of the two connections and screw it firmly in place. The durable polyamide (PA) 6.6 housing offers high strength, stiffness and heat resistance, making this a tough component that will last a long time. The unit also has a broad operating temperature range of -40°C to +105°C, so you can use it in harsh industrial or outdoor environments.


This block is designed to snap onto TS 32 and TS 35 DIN rails, making it a versatile product compatible with industry-standard fittings. Terminal blocks like this one are often used to organise electrical wiring in domestic and commercial buildings.

Features and Benefits

• Beige colour


• Current rating of 30 A Underwriters Laboratories (UL), 32 A International Electrotechnical Commission (IEC), 40 A Canadian Standards Association (CSA)


• Operating temperature range of -40°C to +105°C


• Single level


• Screw termination method


• Voltage rating of 500 V


• Wire size of 22 to 10 American Wire Gauge (AWG)

RS Pro Datasheet
